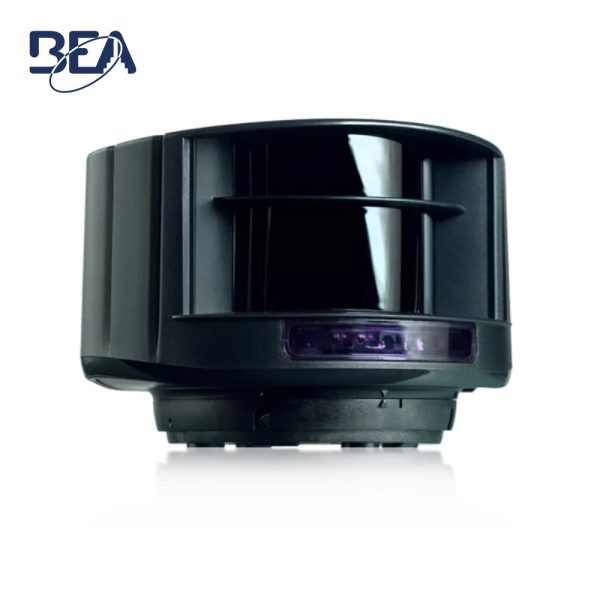

BEA – 10LZRS600 – Presence Sensor – Laser Scanner for Building Automation and Security

Features:

• Largest Detection Field Maximum detection range of 82 ft by 82 ft.

• Safe and Reliable External, entrapment protection device capable of monitoring with interfaces building management systems.

• Reduce False Detections High immunity to environmental interferences

• Eliminates False Detections Has the ability to ignore dynamic ground conditions and extreme weather

• Specifications:

  Technology		LASER scanner, Time-of-Flight measurement
  Detection Mode		Motion and presence
  Detection Range		Default: 33’ x 33’ at 2% remission factor (max. 82 x 82 )
  Angular Resolution		0.3516°
  Min. Detected Object Size (typ.)		0.8 in at 10 1.4 in at 16 2.8 in at 33 6.9 in at 82
  Emission Characteristics		IR LASER – Wavelength 905 nm; output power 0.10mW (CLASS 1) Red visible LASER – wavelength 635 nm; output power 0.95mW (CLASS 2)
  Supply Voltage		10 – 35 VDC at sensor side
  Power Consumption		< 5 W
  Peak Current at Power-on		1.8 A (max. 80 ms at 35 V)
  Cable Length		33
  Response Time		typ. 20 ms (max. 80 ms)+ output activation delay
  Output		2 electronic relays (galvanic-isolated – polarity-free) Max. switching voltage – 35 VDC 24 VAC Max. switching current – 80 mA (resistive) Switching time – tON = 5 ms; tOFF = 5 ms Output resistance – typ 30 Ω Voltage drop on output – < 0.7 V at 20 mA Leakage current – < 10 µA
  Input		2 optocouplers (galvanic-isolated – polarity-free) Max. contact voltage – 30 VDC (over-voltage protected) Voltage threshold – Voltage threshold.
  Response Time		Monitoring Input – < 5 ms
  LED Activity		Blue – Power–on Orange – Error status Red Green (x2) – Detection Output Status (green = no detection, red = detection)
  Material		PC ASA
  Color		Black
  Mounting Angles on Bracket		-45°, 0°, 45°
  Rotation Angles on Bracket		-5 – 5° (lockable)
  Tilt Angles on Bracket		-3 – 3°
  Protection Degree		NEMA 4 IP65
  Temperature Range		powered: -22 – 140 °F (-30 – 60 ºC) unpowered: 14 – 140 °F (-10 – 60 ºC)
  Humidity		0 – 95% non-condensing
  Vibrations		< 2G
  Pollution on Front Screen		Max. 30%, homogenous
  Norm Conformity		2006 95 EC: LVD; 2002 95 EC: RoHS; 2004 108 EC: EMC; IEC 60529:2001; IEC 60825-1:2007; IEC 60950-1:2005; IEC 61000-6-2:2005; IEC 61000-6-3:2006
  Dimensions		3 5⁄8”× 2 3⁄4”× 5” (W × H × D) mounting bracket: + 1⁄2”
