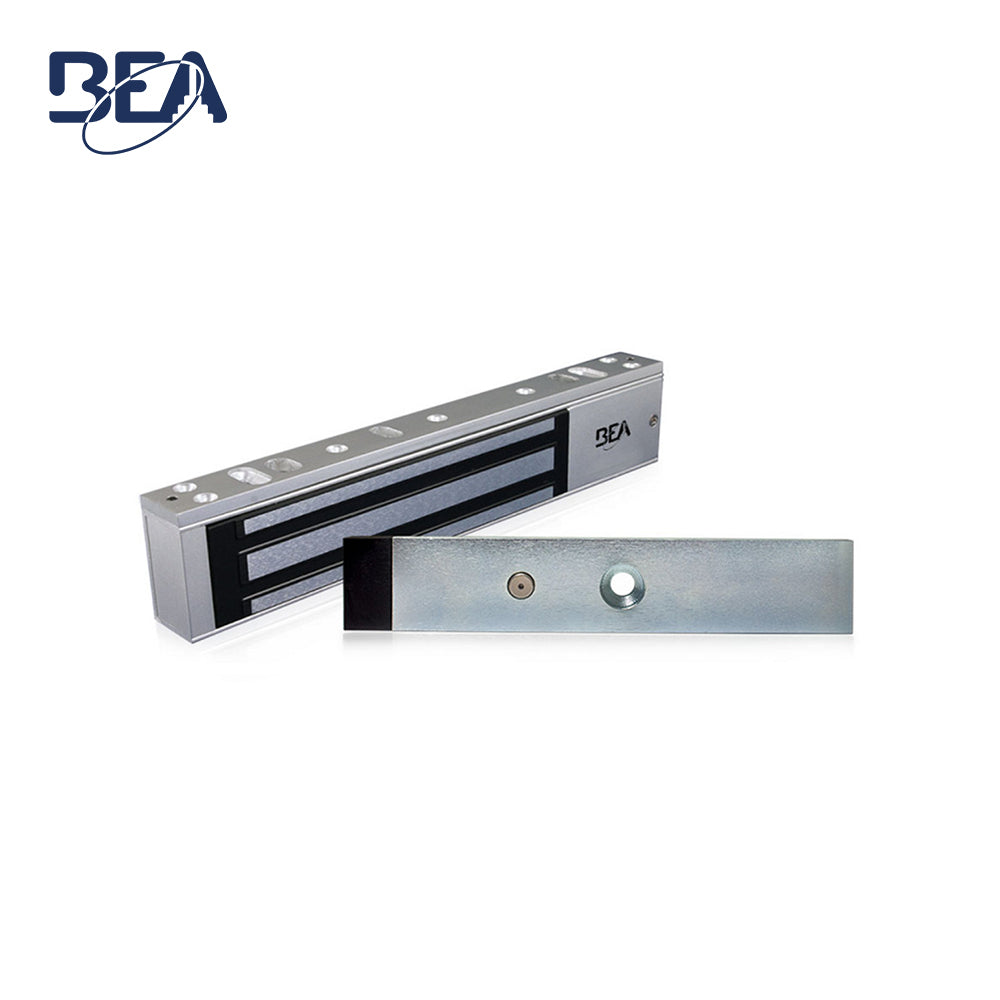

BEA – 10MAGLOCK3ULDS – Single Electromagnetic Surface Mount Lock with Adjustable Relock Time Delay System and Door Status Sensor, 600 LB

BEA’s electromagnetic locks provide reliability and durability in areas for authorized individuals or doorways leading to an emergency exit. Common applications include access control or egress doors using a sensor or a switch to release the locking device.

Features:

• Customizable Adjustable zero to 90 second relock time delay

• Enhanced Reliability Lock status sensor with visible LED offers either normally open or normally closed output configurations

• UL Listed Input voltage of 12 24 VDC, must be used with UL Listed power supply

• Mounting Accessories Variety of mounting hardware available

• Convenient Packages Available Available in access control packages with request-to-exit sensor, logic module, actuator, power supply, and MAGLOCK

• Specifications:

  Lock		Single
  Input Voltage		12 or 24 VDC
  Relay Rating		1.0 A at 24 VDC resistive
  Relay Power Factor		1
  Reed Switch Rating		Dry Contacts: 3W (switching contact 0.25 amps max, switching voltage 30VDC max; resistive load)
  Reed Switch Power Factor		1
  Power Consumption		500 mA at 12 VDC 250 mA at 24 VDC
  Certification		UL1034
  Operating Temperature		14 – 131 °F
  Operating Humidity		0 – 95%
  Dimensions		10 1⁄2 (W) × 2 7⁄8 (H) × 1 1⁄2 (D)
