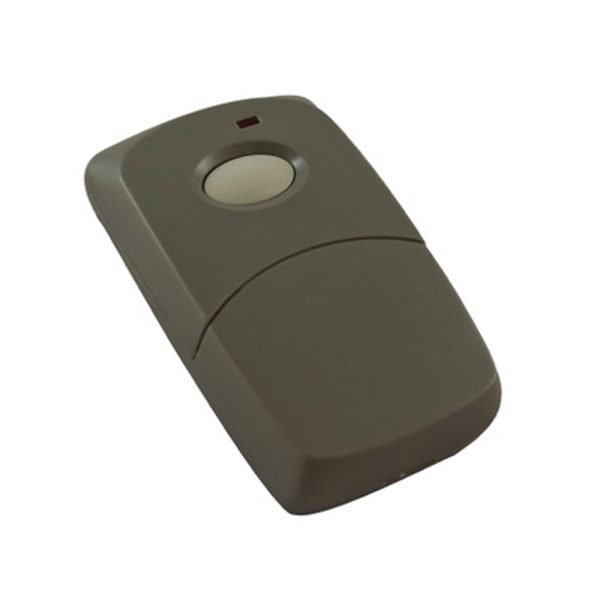

BEA – 10T300HH – 300 MHz 1 Button Hand-Held Wireless Transmitter

The 10T300HH BEA Electrical Accessories BEA transmitters and receivers used together are designed to hold the door open until the transmitter button is released. 300 MHz analog handheld transmitter, 1 button with case and clip BEA s Wireless 300 MHz frequency analog radio control transmitters and receivers are universally compatible with any type of automatic door application. The 300 MHz series from BEA has the ability to recognize 1,024 unique codes per receiver. It s an easy-to-install alternative and makes adding new transmitters simple.

Features:

• 300 MHz frequency hand-held analog transmitter.
• 1-button, controls one receiver.
• Comes with case and clip.
• Universally compatible with any type of automatic door application.
• Use up to seven transmitters per receiver.
• Easy-to-install alternative makes adding new transmitters simple.
• Analog radio controls provide strong, short-range transmissions.
• Transmitters programmed to the receiver through DIP switch settings.

• Specifications:

  Frequency		300 MHz
  Radio Control Type		Analog
  Input Voltage		24 VAC VDC
  Operating Temperature		+14 – 131 °F (-10 – 55 °C)
  Setup		10 DIP switch, access code programming
  Power		(1) 9-volt battery
  Norm Conformity		CE, FCC, IC
  Receiver Dimensions		Without Flange – 4 9⁄10” (L) × 3 1⁄5” (W) × 1 2⁄5” (H) With Flange – 5 2⁄5” (L) × 3 1⁄5” (W) × 1 2⁄5” (H)
