Description

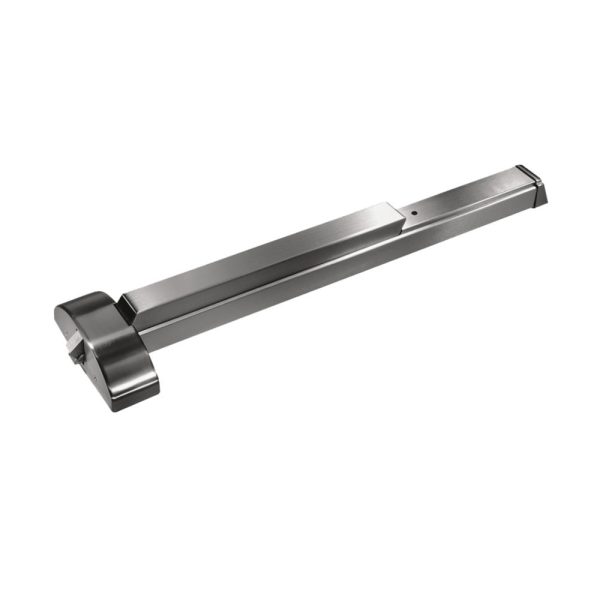

Dormakaba – 9300B – Rim Exit Device with Wide Stile Pushpad and 463 Strike Number – 36 – Grade 1 – Satin Stainless Steel

DORMA 9000 Series exit devices reliably secure egress doors in compliance with all applicable fire life safety code requirements. The 9300 present a simple, heavy-duty, easily installed solution where high quality panic hardware is needed.

Features:

• UL and CUL listed
• Heavy duty cast chassis
• Touchbar, rail, chassis and cover assemblies constructed of heavy gauge solid wrought materials
• Field reversible
• For wood and steel doors
• Exit Only – No Trim
• Size B Door: 28 -36
• Standard 463 strike 4-1 2 x 1-5 8
• BHMA certified to ANSI A156.3 for Grade 1 exit devices

• Product Specifications:

  Vendor		DormaKaba
  Manufacturer		Dorma
  Grade		Grade 1
  Installation		Commercial
  Unit of Measure		Each
  Base Material		Stainless Steel
  UL Listing Type		UL 10C
  ANSI Number		A156.3

  Technical Specifications:

  Physical Appearance		Wide Stile Pushpad
  Device Type		Rim
  Mechanical Function		Exit Only, Accepts Various Trim
  Device Length		36
  Hand		Non-handed
  Includes Trim		No
  Includes Cylinder(s)		No
  Minimum Stile Size		Wide
  Door Material		Metal or Wood
  Door Width		28 to 36
  Door Thickness		1-3 4 to 2-1 4
  Strike Number		463
  Fire Rated		No
  Reversible		Yes
  Product Type		Rim Exit Devices
