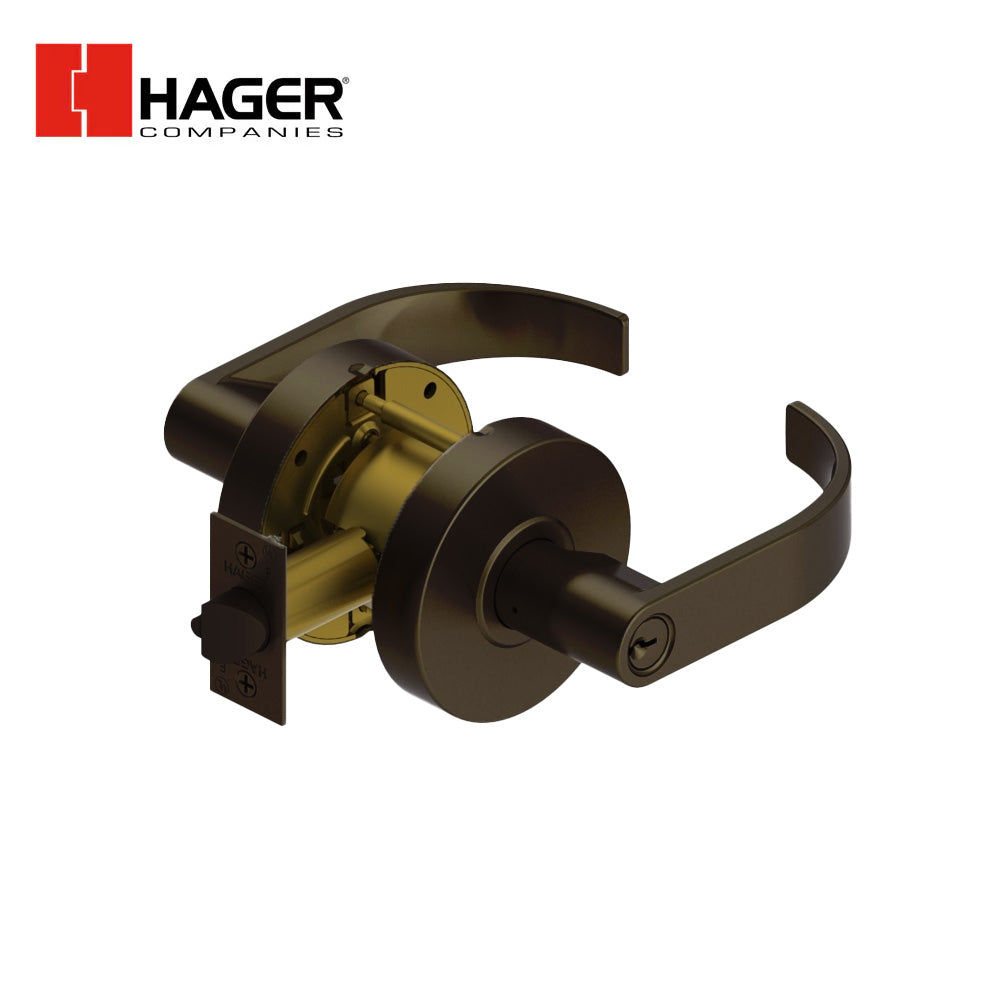

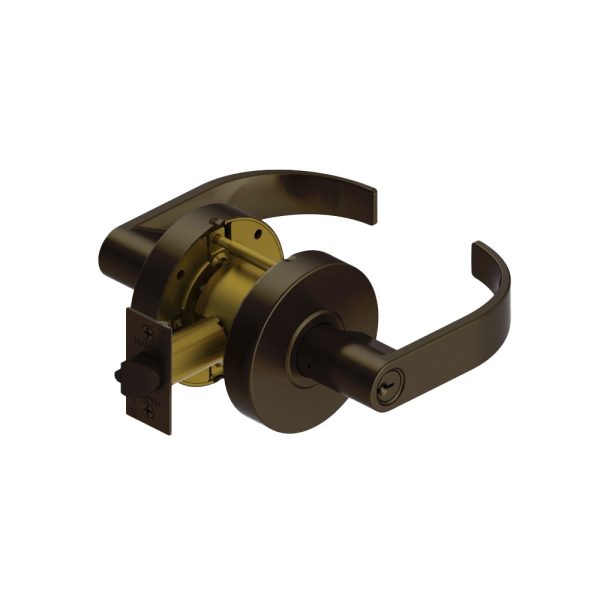

HAGER – 2580 – Storeroom Cylindrical Lever Lock with 2-3 4 Backset – ASA strike – Grade 2

Product Specifications:

Vendor		Hager Companies
Manufacturer		Hager
Grade		Grade 2
Installation		Commercial
Unit of Measure		Each
Limited Warranty		5 Years
Fire Rated		3 Hours {A}

Technical Specifications:

Function		80-Storeroom
ANSI Function		F86 – Storeroom
Cylinder Type		Conventional Cylinder
Num Pins		6
Std. Keyway		Schlage C
Keying		Keyed Different
Key(s)		Cut
Num of Keys		2
Handing		Non-Handed
Door Thickness		1-3 8 – 2
Std. Latch Type		Drive-In Dead Latch
Std. Latch Backset Dim		2-3 4
Std. Strike Type		ASA
Std. Strike Height		4-7 8
Std. Strike Width		1-1 4
Rose Diameter		3-11 32 (85 mm)
Applications		Standard Duty Commercial
Product Type		Cylindrical Lock

Certifications:

• ADA Compliant ANSI A117.1 Accessibility Code
• UL cUL Listed for all functions up to 3 hours A label single doors
• UL10C Positive Pressure Rated
• Meets BHMA A156.2 Grade 2 test standards

• Cylinders Cores:

  • Keyed Different – standard
  • Cylinder drilled 6 pin, Keyed 5 pin – standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately

  • Exposed Trim:

    • Wrought brass, bronze, and stainless steel
    • Lever is zinc based, plated to match BHMA symbols

    • Standard Door Prep:

      • Standard door prep – 2-1 8 (54 mm) diameter (cross bore)
      • Latch hole – 1 (25 mm) diameter (edge bore)

      • Lock Chassis:

        • Heavy gauge steel, zinc dichromated for corrosion resistance
        • Thru-posts are removable
        • Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty

        • Latchbolt Type:

          • 1 2 (13 mm) throw, stainless steel
          • 1-1 8 x 2-1 4 (29 mm x 57 mm) faceplate for 2-3 4 (70 mm) backset
          • 1 x 2-1 4 (25 mm x 57 mm) faceplate for 2-3 8 backset
          • Deadlocking latchbolt prevents manipulation when door is closed

          • Notes:

            • SFIC option available (Cores are sold separately – standard)
            • No exposed mounting screws
            • Non-handed

            • Additional information

Color	Oil Rubbed Bronze-613, Satin Chrome-626
Lever	WTN – Withnell, ARC – Archer
