Description

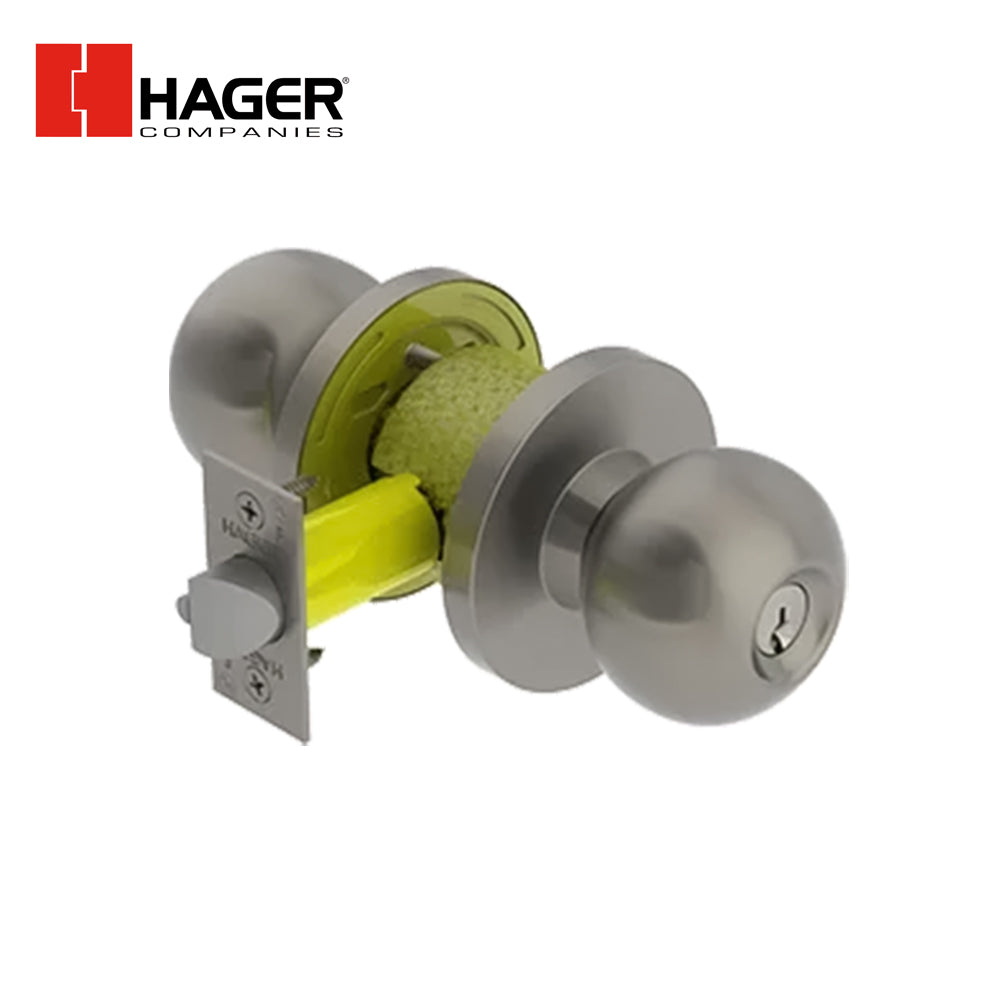

HAGER – 3570 – Classroom Cylindrical Lock with 2-3 4 Backset and Keyed Different – ASA strike – Grade 2 – Satin Stainless Steel

Product Specifications:

Vendor		Hager Companies
Manufacturer		Hager
Grade		Grade 2
Installation		Commercial
Unit of Measure		Each
Fire Rated		3 Hours {A}

Technical Specifications:

Function		Classroom (F84)
Knob style		APL-Apollo
Product Type		Cylindrical Lock
Application		Standard Duty Commercial
Door Thickness		1-3 8 – 1-3 4 (35 mm – 45mm)
Strike		1-1 4 x 4-7 8 (32 mm x 124 mm) ASA strike
Product Material		Zinc
Keyway		Schlage C – Standard, other keyways optional
Keying		Keyed Different
Cylinder Material		Brass
Rose Diameter		3 (76 mm)
Knob Lever Size		2-1 4
Latch Throw		1 2 Throw
Strike Type		ASA Strike
Latch Corner		Square and Round
Exposed Trim		Wrought Brass, Bronze, and Stainless Steel
Lever Options		Archer, August and Withnell
Notes		No exposed mounting screws Non-handed
Lock Chassis		Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty
Included Components		(2) Operating Keys

Certifications:

• BHMA Certified ANSI A156.2, Series 4000 Grade 2
• ADA Compliant ANSI A117.1 Accessibility Code
• UL cUL Listed for all functions up to 3 hours A label single doors
• ANSI A250.13 Severe Windstorm Component
• UL10C Positive Pressure Rated
• Miami Dade County, FL NOA #17-1226.23

• Cylinders Cores:

  • Keyed Different – standard
  • Cylinder drilled 6 pin, Keyed 5 pin – standard
  • Other Keying options, including 6 pin keyed, available from factory
  • Zero bit cylinders will be 6 pin keyed
  • SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately

  • Latchbolt Type:

    • 1 2 (13 mm) throw, stainless steel
    • 1-1 8 x 2-1 4 (29 mm x 57 mm) faceplate for 2-3 4 (70 mm) backset
    • 1 x 2-1 4 (25 mm x 57 mm) faceplate for 2-3 8 (60 mm) backset
    • Deadlocking latchbolt prevents manipulation when door is closed

    • Backsets:

      • 2-3 4 (70mm)
      • 2-3 8 (60mm)
      • 3-3 4 (94mm)
      • 5 (128mm)
