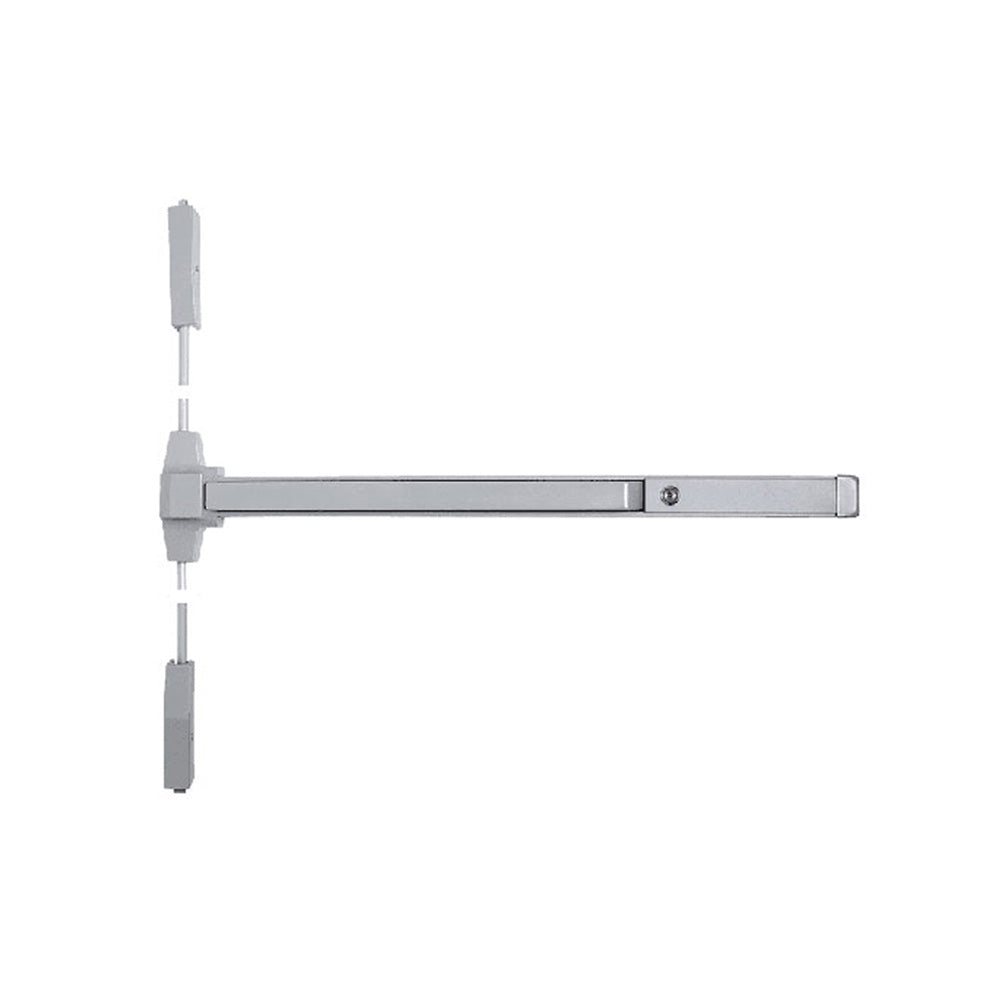

HAGER – 4701 – Surface Vertical Rod Exit Bar with Wide Stile Pushpad and 36 Device Exit Only – Less Trim – Grade 1

Product Specifications:

Vendor		Hager Companies
Manufacturer		Hager
Grade		Grade 1
Installation		Commercial
Unit of Measure		Each
Application		Standard Duty
Base Material		Aluminum
Limited Warranty		5 Years
ADA Compliance		Yes

Technical Specifications:

Physical Appearance		Wide Stile Pushpad
Device Type		Surface Vertical Rod
Mechanical Function		Exit Only
Device Length		36
Hand		Non Handed
Trim Type		Less Trim
Door Material		Metal or Wood
Door Width		30 – 36
Fire Rated		Yes
Product Type		Surface Vertical Rod Exit Devices

Certifications:

• ANSI BHMA A156.3-2014 Grade 1
• UL305 Listed for Panic Hardware
• UL cUL Listed for up to 3 hours for A label single doors
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Warnock Hersey listed for up to 3 hours with fire rated removable mullion
• Complies with ANSI A117.1 for accessible buildings and facilities

• Stile Width:

  • 5-3 8 (137mm) – Minimum stile width required for single doors and standard 5 8 (16 mm) stop
  • 4-7 8 (124mm) – Minimum stile width required for double door x surface vertical rod with double door strike
  • 5-3 4 (146mm) – Minimum stile width required for double door and 2 (51 mm) mullion
  • 5 (127mm) – Minimum stile width required for double doors with a middle rail and a 2 mullion
  • All stile widths are measured from the door edge

  • Strikes:

    • Stainless steel with plated rollers – Included standard with panic devices
    • Solid stainless steel – Included standard with fire-rated devices
    • Surface applied to frame with slotted holes for easy adjustment
    • Double door strike for use with surface vertical rod and rim device available
    • For Rim x Rim x Mullion the 4912 strike is required on a fire-rated opening

    • Dogging:

      • Hex key dogging standard on panic rated devices
      • Cylinder dogging available on panic rated devices – specify CD . 3902 Mortise cylinder with standard cam sold separately. Cylinder Length of 1-1 8 (29mm) – 1-3 8 (35mm) is required

      • Additional information

Color	Satin Stainless Steel-630, ALM (Aluminum), DBZ (Dark Bronze)
Fire Rating	Non-Fire Rated, Fire Rated
