Description

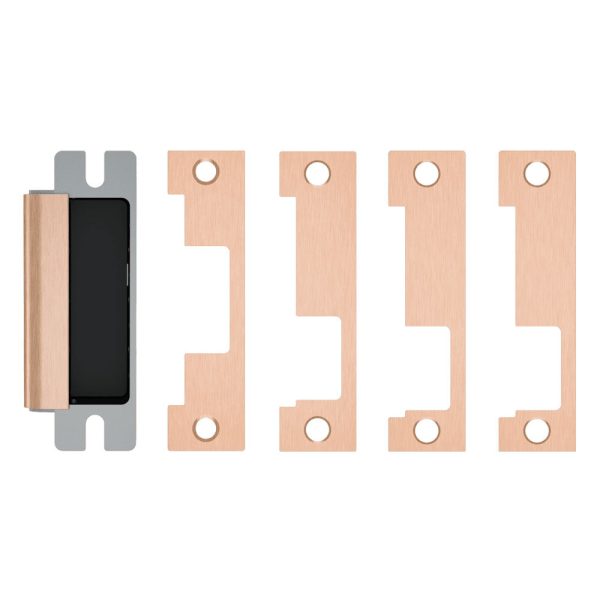

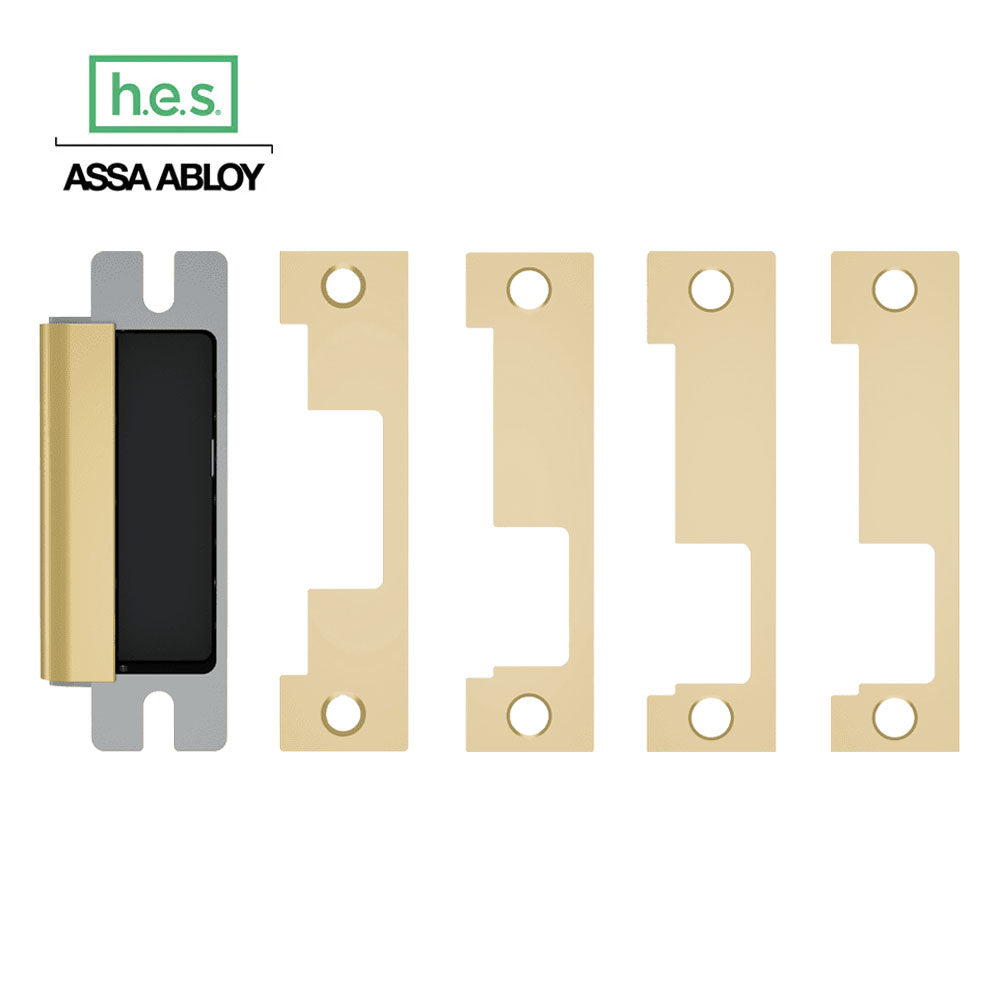

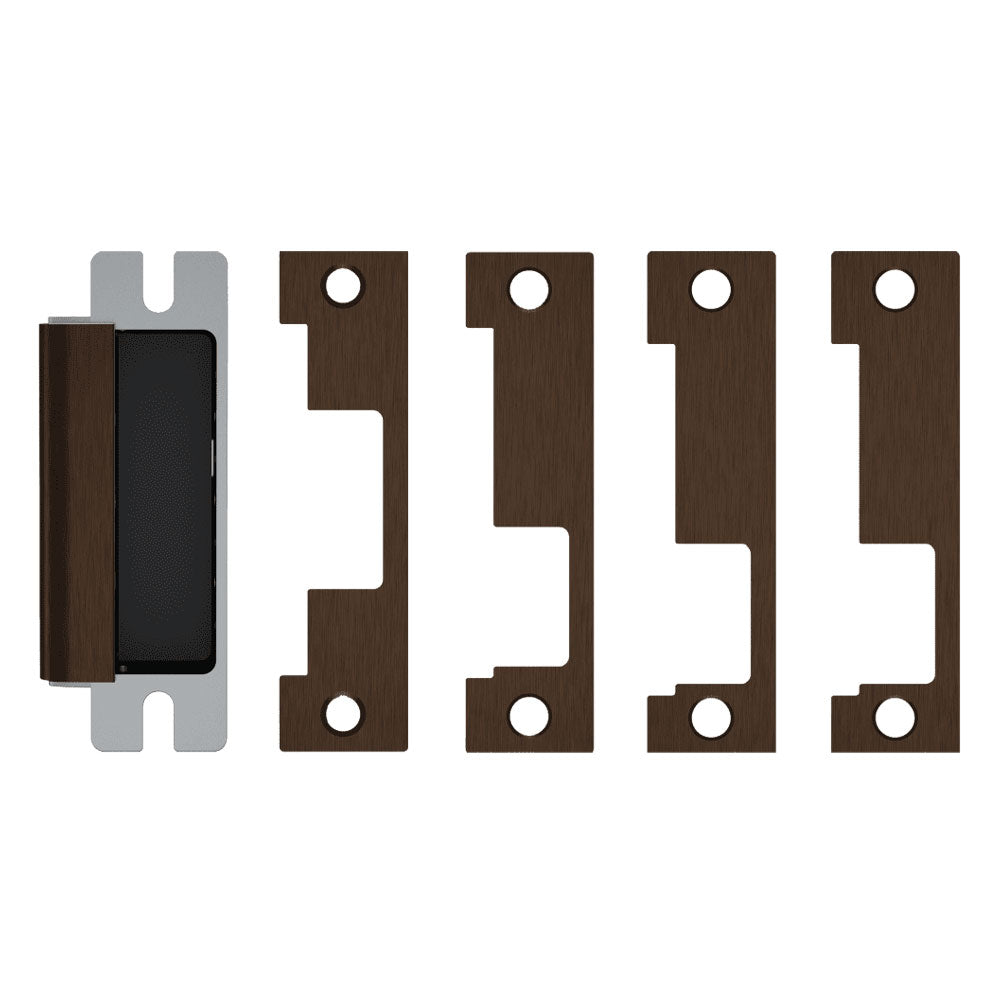

HES – 1600 Series – Electric Strike Body for Cylindrical or Mortise Latchbolt and Deadbolt Locks with 1LB (1J 1K 1KD 1KM) Faceplate Kit – Grade 1 – Auto-Sensing 12 24 VDC

Product Specifications:

Manufacturer		HES
Series		1600
Grade		Grade 1
Installation		Commercial
Unit of Measure		Each
Manufacturer Warranty		1 Year
Fire Rated		3 Hours (A)
Burglar Rated		Yes

Technical Specifications:

Function		Fail Safe Fail Secure
Operating Voltage		12 24 VDC
Amp Draw		.24 Amps at 12VDC, .12 Amps at 24VDC
For Use With		Cylindrical and Mortise Latchbolts and Deadbolts
Faceplate Shape		Flat Face, Square Corners
Faceplate Size		4-7 8 Inch x 1-1 4 Inch
Frame Depth		1-5 8 Inch
Fire Rated		Yes
Frame Application		Metal or Wood
Product Type		Electric Strikes

Additional information

Color	BSP – Black Suede Powder Coat, Bright Brass-605, Bright Stainless Steel-629, Dark Oxidized Satin Bronze-Equivalent-613E, Satin Brass-606, Satin Bronze-612, Satin Stainless Steel-630
Monitoring Option	DLM – Dual Lock Monitor, DLMS – Dual Lock Monitor and Strike Monitor, Electric Strike Only, LM – Lock Monitor, LMS – Lock Monitor and Strike Monitor
