Description

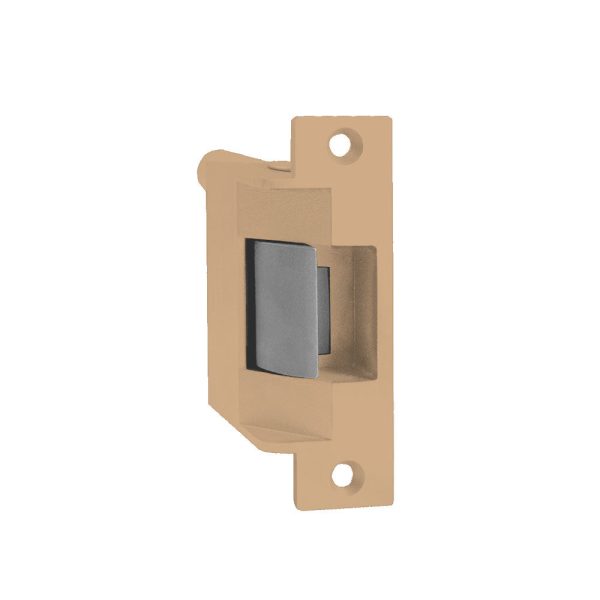

HES Folger Adam – 732-75 – Complete Electric Strike for 3 4 Inch Throw Latchbolt – Wood and Concrete Frames

The 700 series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications. The 712 series is designed to accommodate 1 2 Inch throw latchbolts, and the 712-75 is designed to accommodate 3 4 Inch latchbolts.

Features:

• UL 10C fire-rated, 3 hour single door (fail secure only).
• UL 10C fire-rated, 3 hour double door fire-rated (fail secure only).
• CAN4-S104 (ULC-S104) fire door conformant.
• UL1034, burglary-resistant listed.
• UL 296 (6th Edition) listed.
• ANSI BHMA A156.31, Grade 1.
• New York City accepted.
• NFPA-252 fire door conformant.
• ASTM-E152 fire door conformant.
• RoHS compliant.

• Product Specifications:

  Vendor		Assa Abloy
  Manufacturer		Folger Adam
  Grade		Grade 1
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  Application		3 4 Inch Latchbolt
  BAA Qualified		Yes
  Manufacturer Warranty		5 Years
  Fire Rated		3 Hours (A)

  Technical Specifications:

  Function		Fail Secure Fail Safe
  Operating Voltage		12 24 VDC
  Amp Draw		.29 Amps
  Keeper Size		3 4 Inch
  Configuration		Centered
  For Use With		Cylindrical Locks, Mortise Exit and Latch Locks
  Faceplate Size		4-7 8 Inch x 1-1 4 Inch
  Fire Rated		Yes
  Holding Force		1500 lbs.
  Frame Application		Wood
  Product Type		Electric Strikes

  Additional information

  Color	Bright Brass-605, Bright Stainless Steel-629, Dark Oxidized Satin Bronze Oil Rubbed-613, Dark Oxidized Satin Bronze-Equivalent-613E, Satin Brass-606, Satin Bronze-612, Satin Stainless Steel-630
  Function	Fail-Safe, Fail-Secure
  Voltage	12V, 24V
