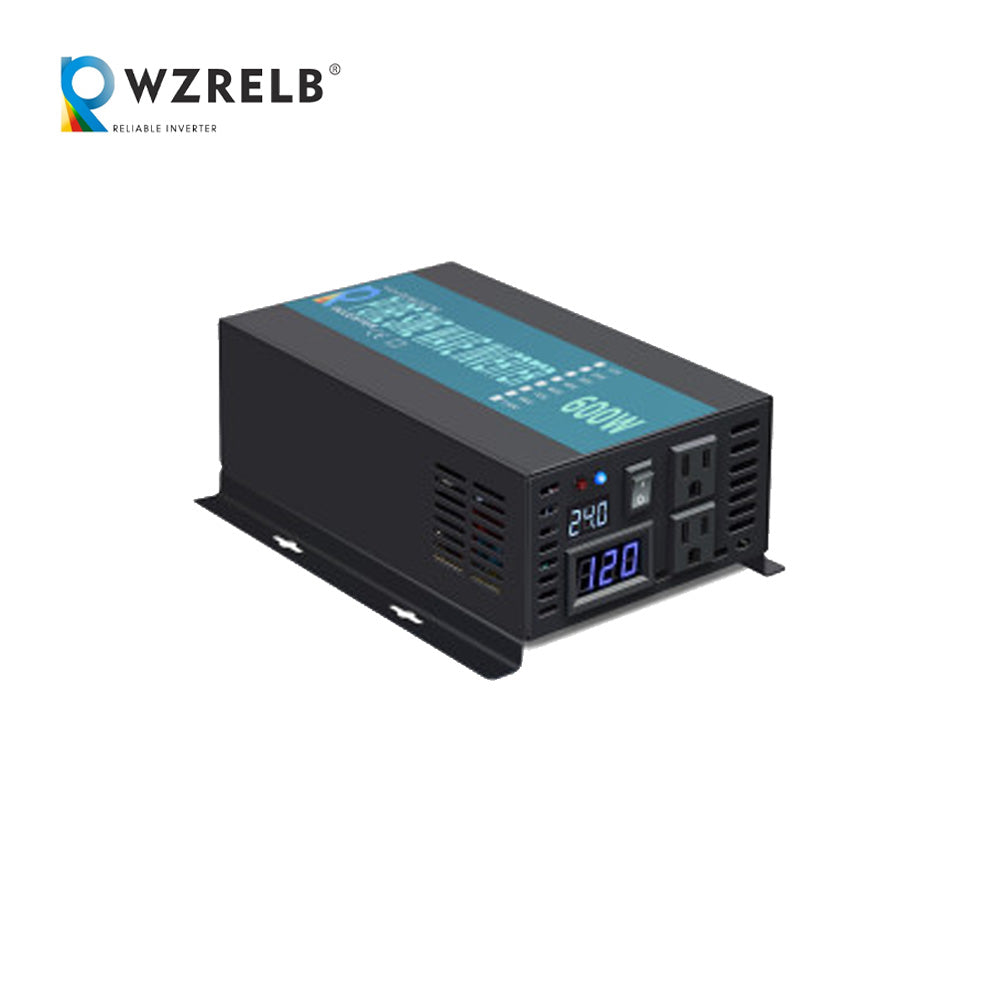

RBP – 600W Power Inverter 12VDC, 24VDC and 48VDC to 120VAC Pure Sine Wave High Frequency Off Grid Solar Inverter

RBP Series is a multi-functional inverter with full safety protection, laclated input and output design, over voltage, low voltage, overload, short circult, over heat, polarity reverse protection(fuses), Built-in soft start function, reduces the instantaneous impact of surge curent, effectively extends the service life of electrical appliances.

Function Description:

• Fault Indicator
• Status Indicator
• On off Switch
• Outlet
• Air Vents
• DC Input LED Display
• AC Output LED Display
• Grounding Screw
• Hardwire Terminal
• Cooling Fan
• Battery Positive Input
• Battery Negative Input

• 600 Watt Pure Sine Wave Inverter:

  • Power Output: Capable of providing 600W continuous power with a surge capacity of 1200W.

  • Installation Kit: Includes 2 cables with cable lug terminals, a manual, and fuses, ensuring everything necessary for installation is provided.

  • Perfect Sine Wave Output: Equipped with extra thick (2.0mm) PCB, high-quality mosfets, and true copper inductance to produce a perfect pure sine wave AC output, enhancing performance and compatibility with sensitive electronics.

  • Protections: Offers comprehensive protection features including under-voltage alarm and cut-off protection, over-voltage protection, reverse fuse protection, high-voltage cut-off protection, over-current protection, over-load shut-off protection, short circuit fuse protection, and over-thermal protection.

  • LED Display: Features an LED display for both DC voltage and AC voltage, providing clear power usage monitoring for users. It serves as a reliable backup power supply for off-grid systems or during emergencies like power failures.

  • Silent Cooling System: Utilizes intelligent silent fans to cool the inverter down automatically without generating annoying noise. Additionally, there is a rational and sufficient design of heat sink inside the inverter for effective heat dissipation.

  • Product Specifications:

    Net Weight (pound)		4.8
    Wattage		600W
    AC Output Voltage		12v 24v 36v 48v 60v 72v 96v 110v
    DC Input Voltage Range		10-15v 21-30v 30v-45v 42-60v 50-75v 60-90v 75v-115v 90-135v
    AC Output Voltage		110v 120v 220v 230v 240v
    No Load Current Draw		0.6A
    Efficiency		85% — 90%
    AC Regulation		3%
    Frequency		50Hz or 60Hz
    Low Voltage Alarm		9.5-10.5v 19.5-21.5v 29.5v-31.5v 43-45v 50.5-51.5v 60.5-61.5v 76-77v 91-93v
    Low Voltage Shut Down		9-10v 18.5-20.5v 29-30v 41.5-42.5v 50-51v 60-61v 74-76v 90v
    Over Load		Shut Off & Recover Manually
    Over Voltage Shut Down		15.5v 30.5v 45.5v 61.5v 75v 90v 115 135v
    Over Voltage Protection		Shut Off Output Automatically
    Over Heat Protection		Cooling Fans Run When It s Over 120 F
    Cooling Fans		1
    Working Temperature		-10℃ TO 50℃ -50℉ TO 122℉
    Storage Temperature		-30℃ TO 70℃ -86℉ TO 158℉
    Working Humidity		20% TO 90% RH Non-condensing
    Start		Soft Start
    Total Harmonic Distortion		THD<5%
