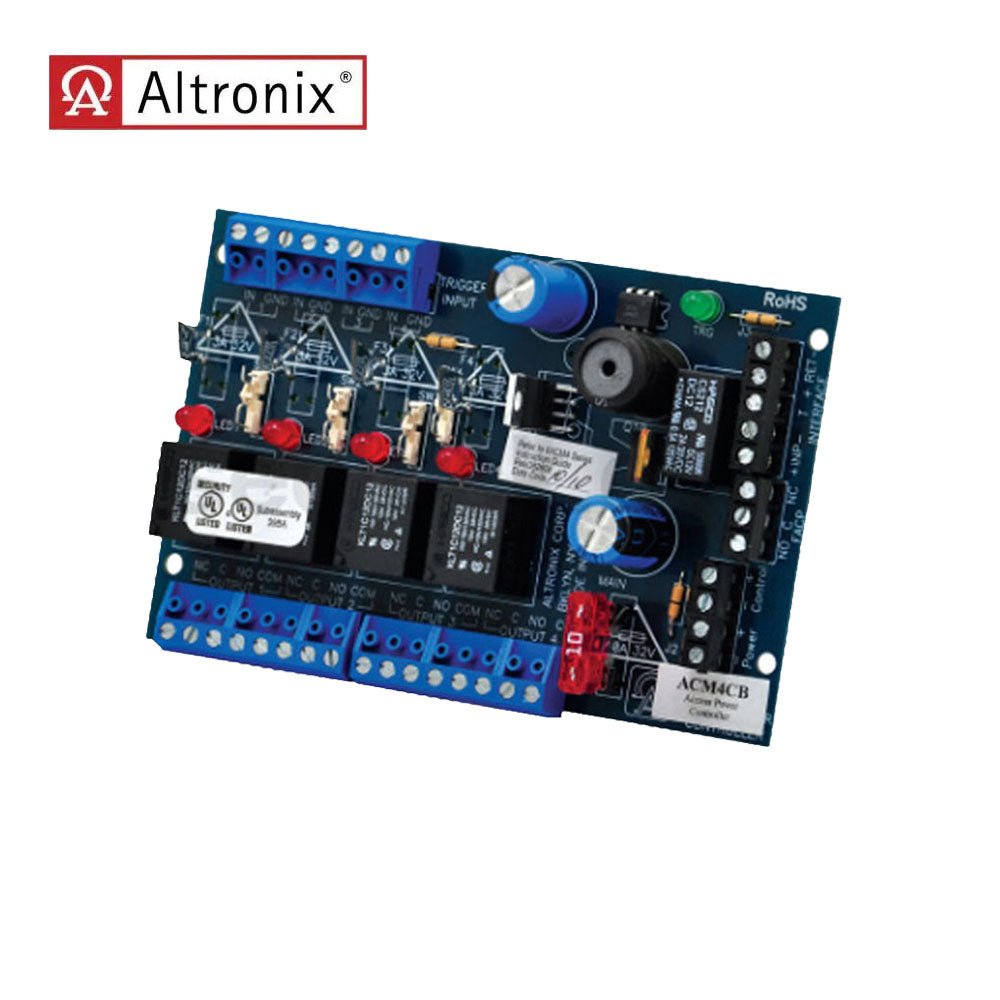

Altronix – ACM4CB – Access Power Controller – 4 PTC Class 2 Relay Outputs

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

• Product Specifications:

  Manufacturer		Altronix
  SKU		ACM4CB
  UID		ALT100ACM4CB
  Installation		Commercial
  Unit of Measure		Each
  Purpose		Access Control
  Type		Hardwired
  Product Type		Power Supplies

  Technical Specifications:

  Input		Power supply input options: a) One (1) common power input (board and lock power). b) Two (2) isolated power inputs (one (1) for board power and one (1) for lock accessory power). Four (4) Access Control System trigger inputs: a) Four (4) normally open (NO) inputs b) Four (4) open collector sink inputs c) Any combination of the above.
  Output		Four (4) independently controlled Class 2 Rated PTC protected power-limited auto-resettable 2A outputs: a) Four (4) Fail-Safe and or Fail-Secure power outputs. b) Four (4) dry form C 5A rated relay outputs Output ratings: PTCs are rated 2A each Total output current is determined by the power supply, not to exceed a maximum of 10A. total

  Download:

  • Installation Instruction

  • Additional information
