Description

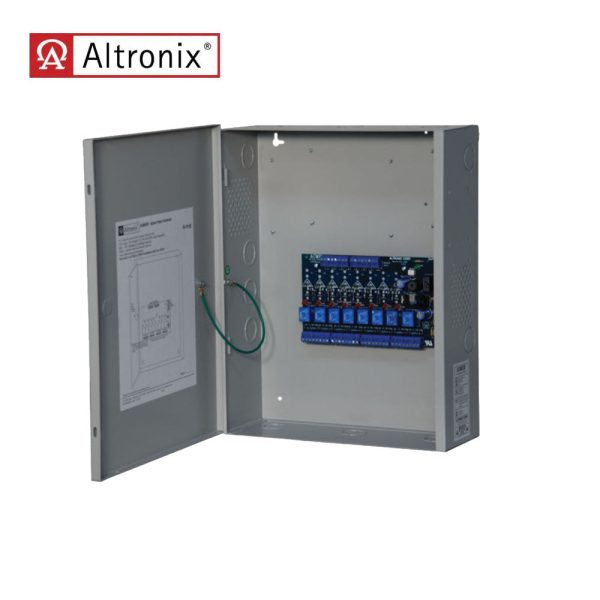

Altronix – ACM8CBE – Access Power Controller – 8 PTC Class 2 Relay Outputs with BC400 Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

• Product Specifications:

  Manufacturer		Altronix
  SKU		ACM8CBE
  UID		ALT100ACM8CBE
  Installation		Commercial
  Unit of Measure		Each
  Purpose		Access Control
  Type		Hardwired
  Product Type		Power Supplies

  Technical Specifications:

  Input		a)12 to 24 volt AC or DC operation (setting not required), (0.6A @ 12volt, 0.3A @ 24 volt current consumption with all relays energized) b)AC applications not evaluated by UL c)Main fuse is rated at 10A 250V Power supply input options: a) One (1) common power input (board and lock power). b) Two (2) isolated power inputs (one (1) for board power and one (1) for lock accessory power). Eight (8) Access Control System Trigger Inputs: a) Eight (8) normally open (NO) inputs b)Eight (8) open collector sink inputs c) Any combination of the above.
  Output		Eight (8) independently controlled 2.5A outputs: a) Eight (8) Fail-Safe and or Fail-Secure power outputs. b) Eight (8) dry form C 5A rated relay outputs c) Any combination of the above Eight (8) auxiliary power outputs (unswitched) Output ratings: PTCs are rated 2.5A each Total output current is determined by the power supply, not to exceed a maximum of 10A. total

  Download:

  • Installation Instruction

  • Additional information
