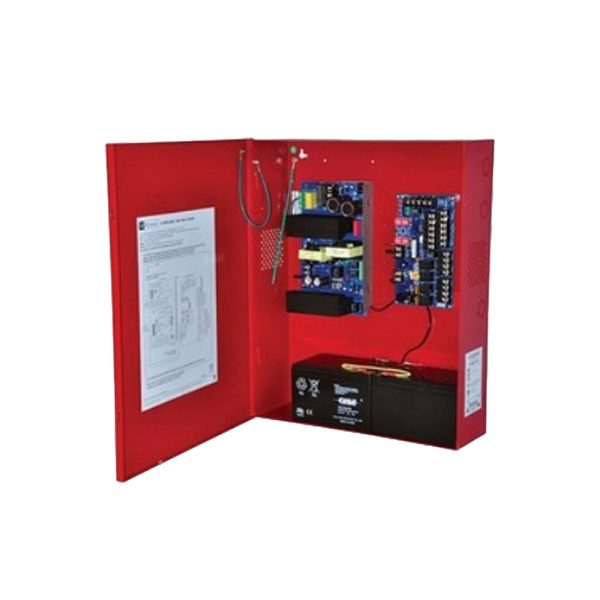

Altronix – AL1002ULADAJ – NAC Power Extender – Input 120VAC 60 Hz (5A) – Class 2 Rated Power Limited Outputs

Altronix AL1002ULADAJ is an extremely cost effective voltage regulated remote NAC Power Extender. It may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and providing auxiliary power to support system accessories.

Product Specifications:

• Manufacturer: Altronix

• SKU: AL1002ULADAJ

• UID: ALT100AL1002ULADAJ

• Installation: Commercial

• Unit of Measure: Each

• Type: Hardwired

• Product Type: Power Supplies

• Technical Specifications:

  Input:

  • Voltage:
    120VAC, 60Hz, 5A
    Two (2) Class A or two (2) Class B inputs.
    Two (2) NC dry contact trigger inputs.

  • Input Ratings (INP1 and INP2):
    8-30VDC 6.5mA max from FACP.
    12V 6.5mA, 24V 6.5mA from FACP

  • Output:

    • Voltage:
      24VDC power-limited outputs

    • Current:
      10A max. total alarm current
      2.5A max. current per output

    • Auxiliary:1A.

    • Other:
      Thermal and short circuit protection with auto reset
      Filtered and regulated outputs

    • Programmable Supervised Indicating Circuit Outputs:
      Four (4) Class B, or Two (2) Class A, or
      One (1) and Two (2) Class B
