Description

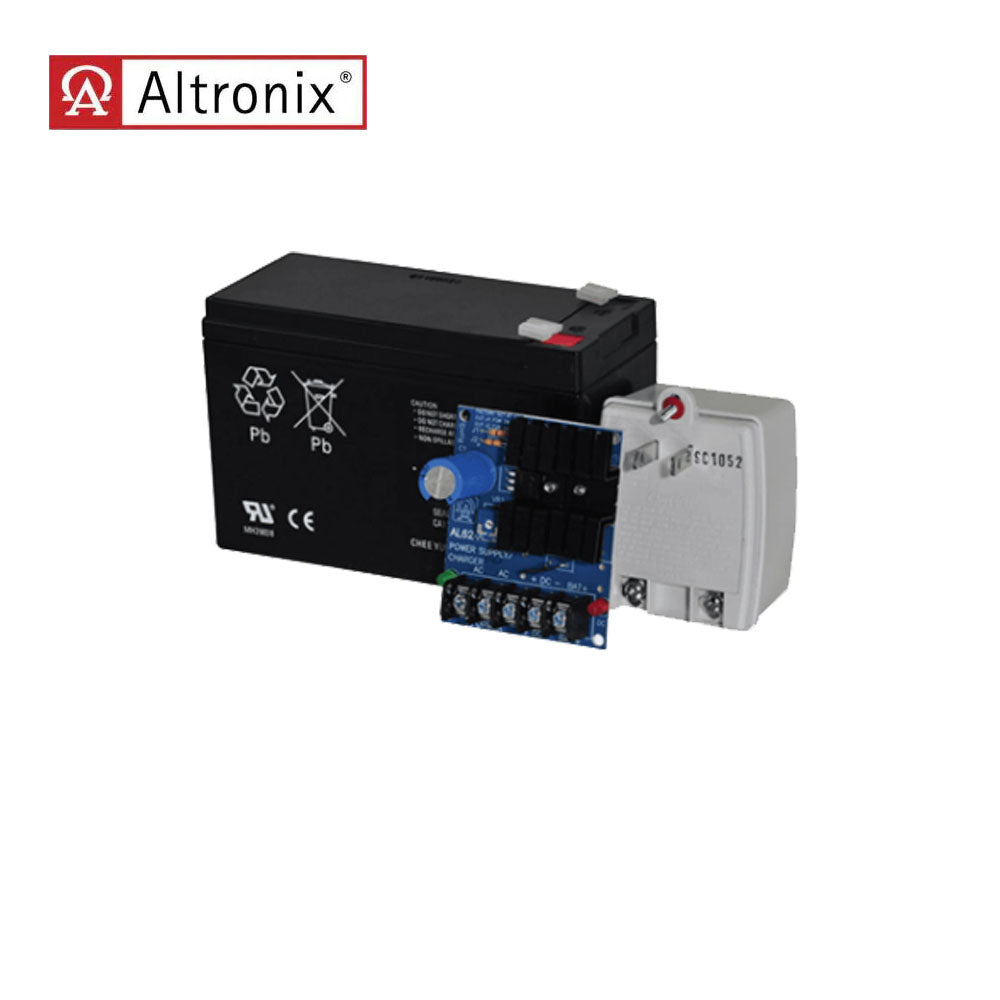

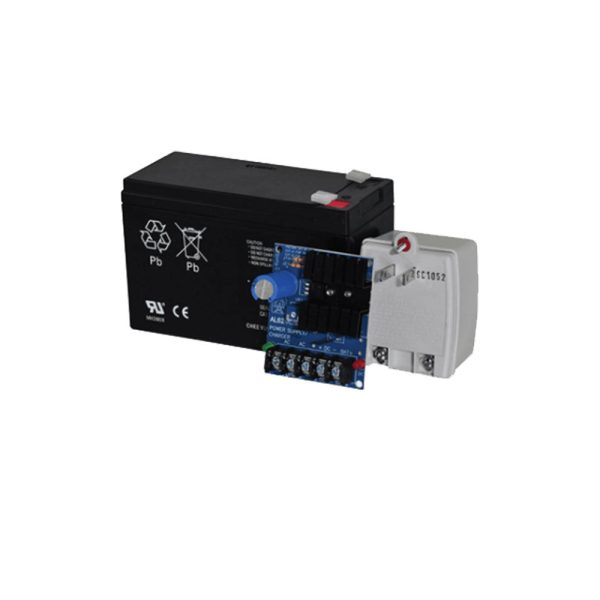

Altronix – AL62412CX – Linear Power Supply Board with Plug-in Transformer – Single Output

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

• Features:

  • Power supply charger with BT126 (12VDC 7AH) and TP1620 plug-in transformer (16.5VAC 20VA).

  • Input:

    • 115VAC, 60 Hz 1.2A.

    • Output:

      • 12VDC output.
      • 12VDC @ 1.2A supply current.
      • Filtered and electronically regulated output.
      • Short circuit and thermal overload protection

      • Battery Backup:

        • Built-in charger for sealed lead acid or gel type batteries
        • Automatic switch over to stand-by battery when AC fails.
        • PTC battery protection

        • Visual Indicators:

          • AC input and DC output LED indicators.

          • Temperature:

            • Operating 0° C to 49° C (32° F to 120° F)
            • Storage: – 20° C to 70ºC ( – 4° F to 158° F)
            • Relative Humidity 85% + – 5%
            • BTU Hr. (approx.): 7 BTU Hr.
            • System AC input VA requirement: 138VA.

            • Dimensions (approximate):

              • 2.5 W x 3 L x 1.5 H (63.5 mm W x 76.2 mm L x 38.1 mm H).

              • Download:

                • Installation Instruction
