Description

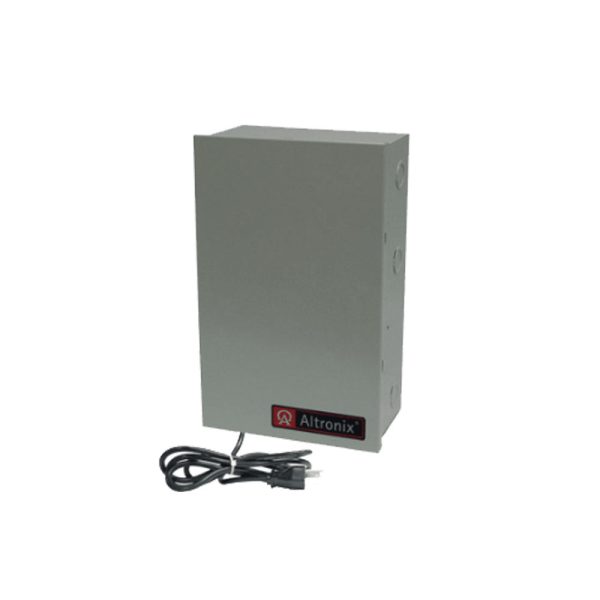

Altronix – ALTV248300UL3 – CCTV Power Supply with 3 Wire Line Cord – 8 Fuse Protected Outputs – Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

• Features:

  • Secondary fuse rated @ 15A 32V.
  • AC power LED.
  • Power ON OFF switch.
  • Spare fuses provided. (all models w primary and or secondary fuses).
  • Factory installed 3-wire line cord.

  • Input:

    • 115VAC, 50 60Hz, 2.7A.

    • Output:

      • Eight (8) fuse protected outputs.
      • 24VAC @ 12.5A (300VA) supply current (1.563A per device, 3.5A max.) or 28VAC @ 10A (280VA) supply current (1.25A per device, 3.5A max.).
      • Outputs are rated @ 3.5A.
      • Surge suppression.

      • Temperature:

        • Operating 0ºC to 49ºC (32ºF to 120ºF).
        • Storage – 20ºC to 70ºC ( – 4ºF to 158ºF).
        • Relative Humidity 85% + – 5%.
        • BTU Hr. (approx.): 24VAC: 154 BTU Hr. and 28VAC: 143 BTU Hr.
        • System AC input VA requirement: 310.5VA.

        • Enclosure:

          • Wall mount enclosure for indoor use.
          • Dimensions 7.25 W x 12.25 H x 4.5 D (184 mm W x 311 mm H x 114 mm D).
          • 1 2 and 3 4 combination knockouts.

          • Download:

            • Installation Instruction
