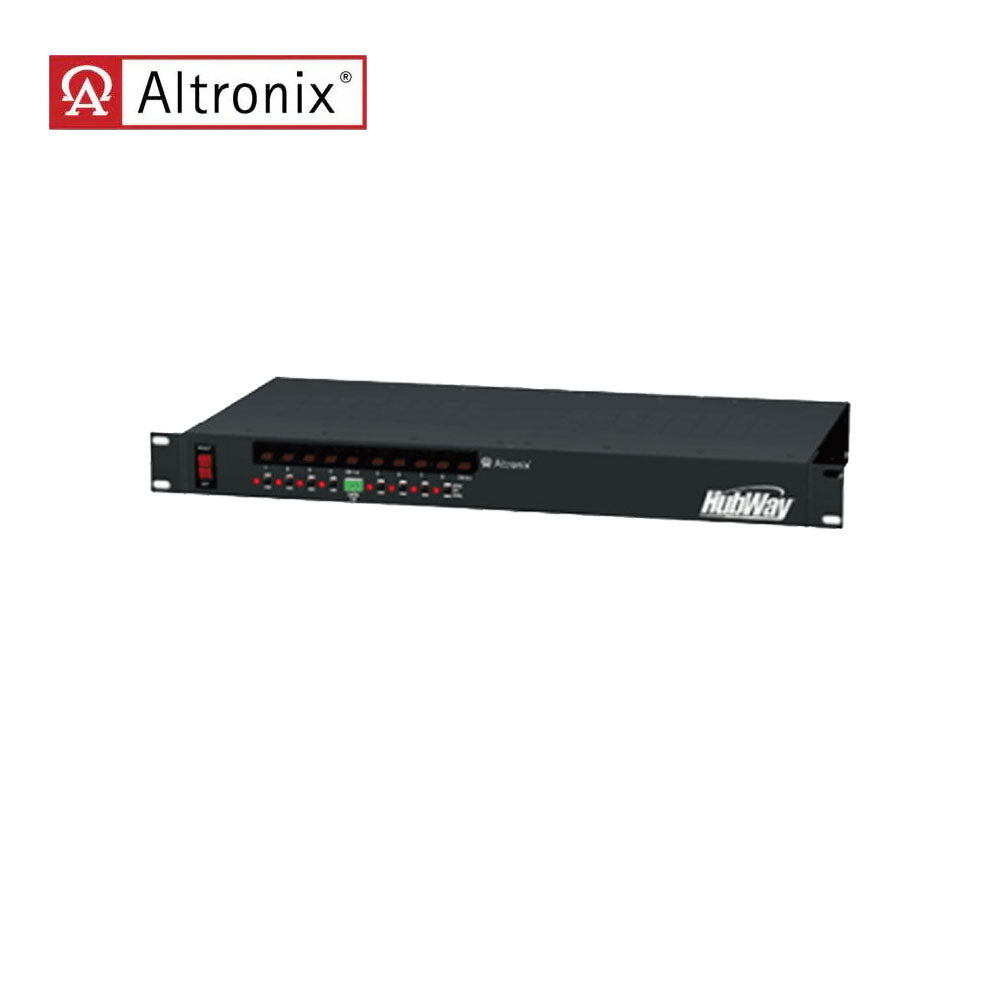

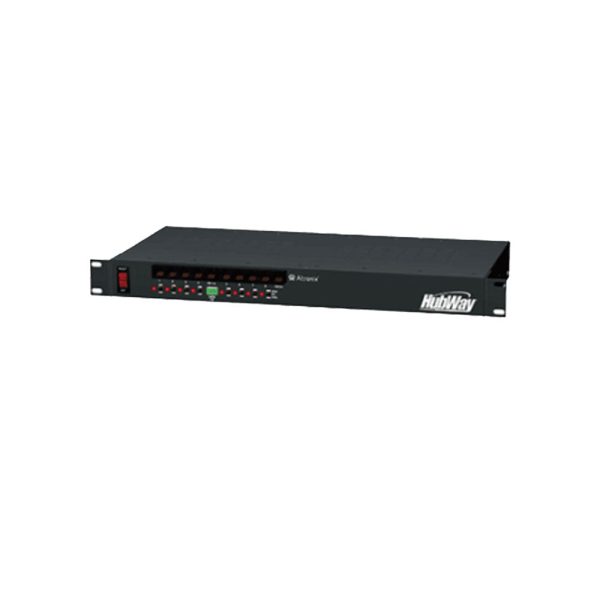

Altronix – HUBWAY8DI – Passive UTP Transceiver Hub With Integral Isolated Camera Power – 8 PTC Isolated Protected Class 2 Power-Limited Outputs

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

• Input:

  • Voltage: 115VAC, 60Hz, 2.5A or 230VAC, 50Hz, 1.5A.

  • Output:

    • PTC protected electronically isolated outputs rated 1A per channel.
    • Voltage: Individually selectable 24VAC or 28VAC power outputs with OFF position.
    • Current: Up to 1A max. per channel, not to exceed a total of 8A maximum current.
    • Other: Surge suppression.

    • Video:

      • Eight (8) channels of video over twisted pair up to a distance of 228.6m (750 ft.) per channel.
      • Eight (8) 75 Ohm video outputs.

      • Data:

        • RS422 RS485 data inputs.

        • Indicators (LED):

          • Outputs: Eight (8) individual power LED indicators.

          • Temperature:

            • Operating: 0° C to 49° C (32° F to 120° F).
            • Storage: – 20° C to 70° C ( – 4° F to 158° F).
            • Relative Humidity 85% + – 5%.
            • BTU Hr. (approx.):
              24VDC: 98 BTU Hr.
              28VAC: 115 BTU Hr.

            • Enclosure:

              • Modular 1U standard EIA 19 rack mount chassis.
              • Dimensions 19.12 W x 1.62 H x 8.5 D (486 mm W x 42 mm H x 216 mm D).

              • Download:

                • Installation Instruction
