Description

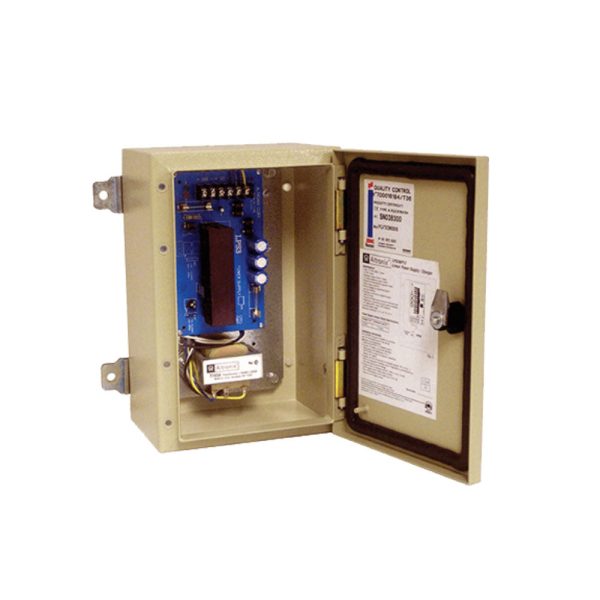

Altronix – LPS3WP12 – Outdoor Linear Power Supply Charger – Single Output – Grey Enclosure

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP. A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.
Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP

• Input:

  • 115VAC 50 60Hz rated @ 0.5A.

  • Output:

    • 12VDC output.
    • 2.5A continuous supply current.
    • Filtered and electronically regulated output.
    • Short circuit and thermal overload protection.

    • Battery:

      • Battery leads included.
      • Built-in charger for sealed lead acid or gel type batteries.
      • Automatic switch over to stand-by battery when AC fails (zero voltage drop).
      • Fused battery protection (circuit breaker available).

      • Visual Indicator:

        • AC DC power LED indicator.

        • Temperature:

          • Operating: 0° C to 49° C (32° F to 120° F).
          • Storage: – 20° C to 70° C ( – 4° F to 158° F).
          • Relative Humidity 85% + – 5%.
          • BTU Hr. (approx.): 15 BTU Hr.

          • Enclosure:

            • NEMA 4 IP 65 Rated enclosure for outdoor use.
            • Dimensions 8 W x 12 H x 6 D (203.2 mm W x 304.8 mm H x 152.4 mm D).

            • Download:

              • Installation Instruction
