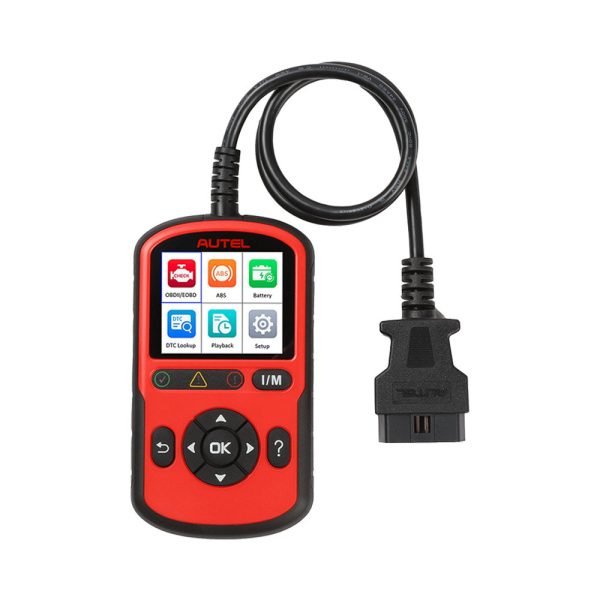

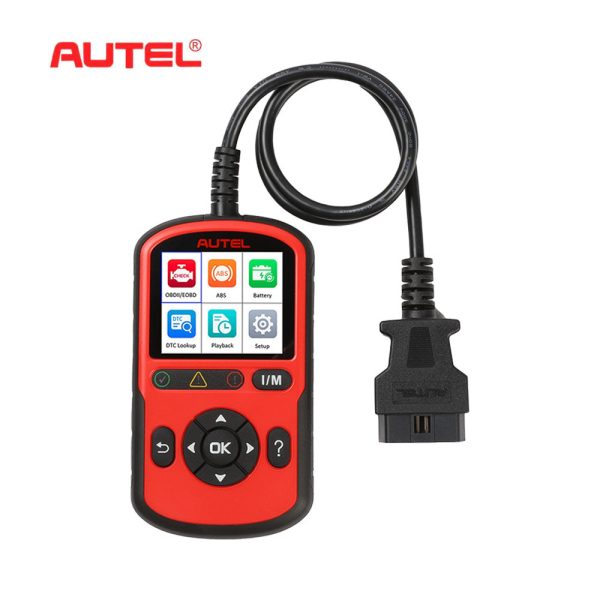

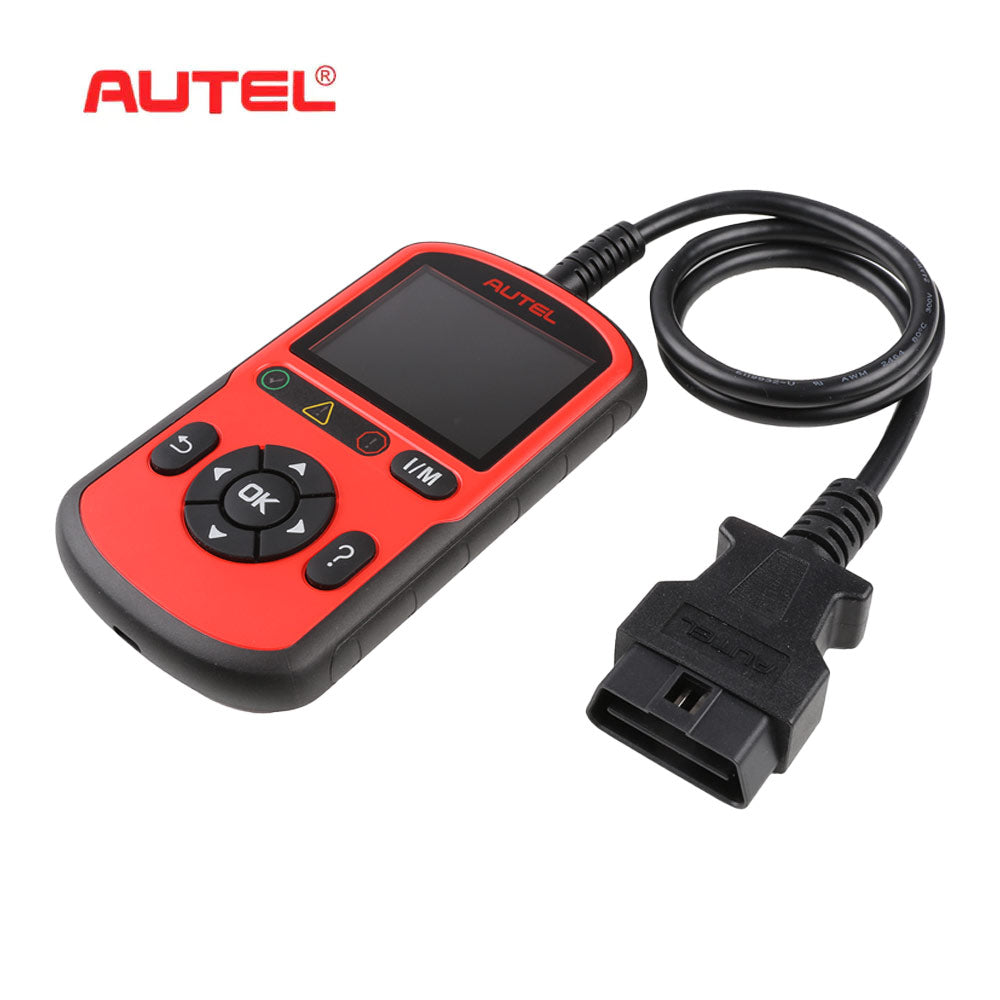

Autel AutoLINK AL549 Professional OBDII Code Reader

The AutoLink AL549 OBDII Code Reader supports all 10 modes of OBDII test for complete vehicle diagnostics and ABS warning lights. The easy-to-use tool features a TFT color display and built-in speaker for visual and audible message cues and the patented One-Click I M Readiness Key for quick State Emissions.

Features:

• Compatible with U.S., Asian, and European Vehicles, 1996 and newer
• Read Erase Codes, View Freeze Frame and Live Data
• Easily determines the causes of the Check Engine Light and ABS warning light, turns off lights, and erases codes
• AutoVIN function for quickly identifying manufacturer-specific codes
• Supports all 10 modes of OBDII test for complete diagnosis
• Patented one-click I M readiness key with color coded LEDs, and built-in speaker provides both visual and audible tone for quick readiness verification
• Easy-to-use with one plug-in
• Supports reading vehicle battery information from OBD port, including starting system test and charging system test

• Specifications:

  Display		2.8-inch LCD (320×240 dpi)
  Connectivity		Type-C USB OBD II DB16
  Operating Temp		0℃ to 60 ℃ (32℉ to 140℉)
  Storage Temp		-20℃ to 70 ℃ (-1℉ to 158℉)
  External Power		8.0 to 18.0V power provided via vehicle battery
  Dimensions (H x L x W)		267.97mm (10.55”) x 85mm (185.93”) x 19.9mm (37.85”)
  Weight		376.48g (with wire) 266.9g (without wire)

  Comparison:

  Functions		AL549		AL529HD		AL529		AL329
  Read MIL Status		√		√		√		√
  One Touch I M		√		√		√		√
  View Freeze		√		√		√		√
  Frame Data		√		√		√		√
  Read Erase DTCs		√		√		√		√
  View Vehicle Information		√		√		√		√
  AutoVIN for Quick DTC definition		√		√		√		√
  O2 Monitor test		√		√		√		—
  On-board Monitor test		√		√		√		—
  Component Test		√		√		√		—
  Modules Present		√		√		√		—
  Support J1939 and J1708 Protocols		—		√		—		—
  Read Erase DTCs for ABS		√		—		—		—
  Read Erase DTCs for SRS		—		—		—		—
  Read Erase DTCs for Engine		—		—		—		—
  Read Erase DTCs for Transmission		—		—		—		—
  Read Enhanced Codes in Powertrain system for Ford, GM and Chrysler		√		√		√		—
  Battery Test		√		—		—		—
  Save and Playback Data		√		√		√		—
  DTCs Help		√		√		√		—
  Print Data Via Windows-baded PC		√		√		√		—
  Vehicle Coverage		Vehicles compatible with OBD protocols		Vehicles compatible with OBD protocols and J1939, J1708 protocols		Vehicles compatible with OBD protocols		Vehicles compatible with OBD protocols

  Warranty:

  • One-Year Limited Warranty

  • Download:

    • Product Flyer
    • User Manual
