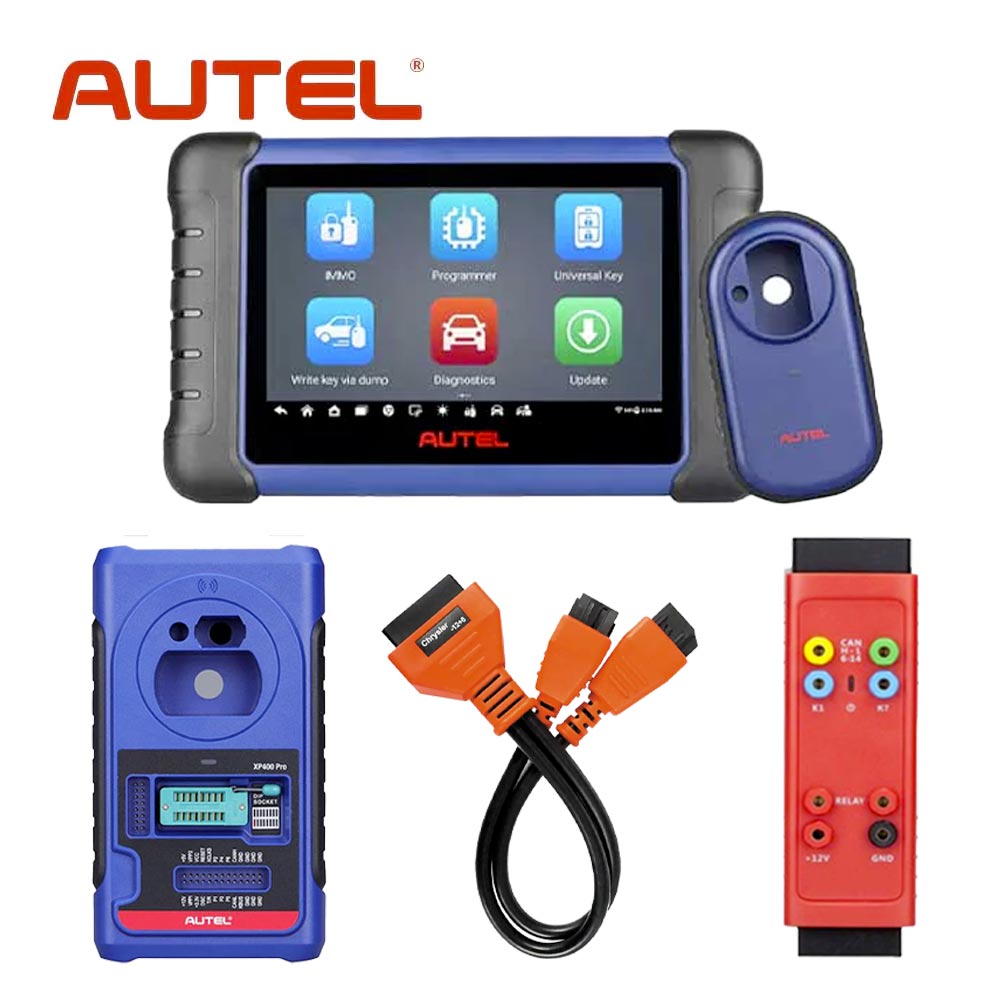

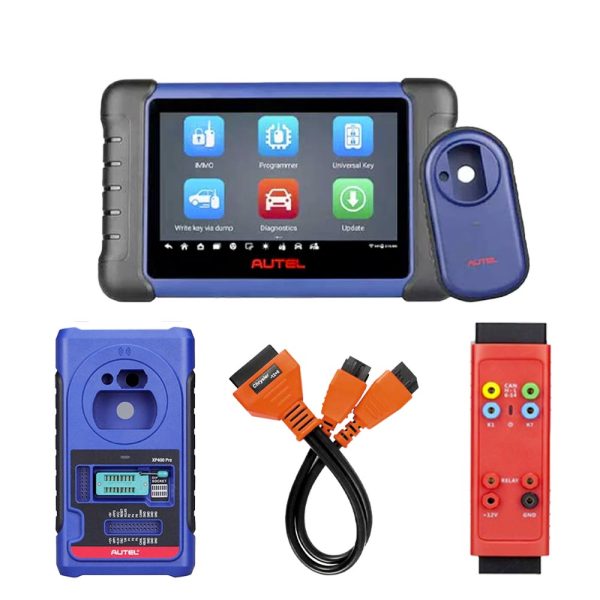

Autel IM508S is a professional car key programmer and immobilizer that combines key programming, all systems diagnosis and advanced service functions. It could perform all keys lost, add key, key learning, remote control add, remote control learning, key chip read and write and other car related functions

*Wifi is required for key programming and diagnostics*

Highlights:

• Global Version without IP Blocking Problem
• One Year Free Update Online. After One Year, IM508 Software Subscription Cost 350USD per year

• Function IMMO+ Diagnose: Powerful combination of key programming all system diagnostics advanced maintenance services

• Vehicle Supported: Powerful OE level diagnostics for more than 80 US, Asian and European makes and models

• Advanced Maintenance Services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn

• Hardware:

  Processor		4x 1.8GHz
  OP System		Android 11
  RAM		4 GB
  ROM		64 GB
  Display		7 inches, 1024*600
  Connectivity		Wi-Fi
  Camera		No
  VCI		Wired
  Programmer		XP200
  Battery		5000 mAh
  Weight		0.78 kg

  Software:

  Main Features		1.Support auto select car 2.Support guilding function 3.Support IMMO Status scanning
  IMMO
  ve IMMO functions
  Diagnostics
  Basic diagnostic function
  Remote Expert
  N A

  Keytool Function:

  Key generation		Support
  Chip simulation		Via APB112

  Diagnostic:

  Auto VIN		Support
  Read Clear Codes		Support
  Live Data		Support
  Freeze Frame		Support
  ECU Information		Support
  Active Test		No (Support in Aug)
  Service Functions		36 Kinds
  Service Functions		No (Support in Aug)
  Online Coding		Support (Partial)
  Coding		Support (Partial)
  Hidden Function Renewal		Support (Via MV105 108)
  Guilding Function		Support (Via MV105 108)
  Online Programming		Support (Via MV105 108)
  Scan VIN License		Support (Via MV105 108)
  Protocol		Support (Via MV105 108)

  Autel G-BOX3 Key Programming Adapter for Mercedes and BMW Vehicle All Key Lost Work with Autel MaxiIM IM608 PRO II IM608 PRO IM608 II IM508 IM508S

  Description:

  The Autel G-Box3 adapter, compatible with the MaxiM IM608Pro, IM608, and IM508 (with an additional purchase of XP400), offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 CUs and supports on-vehicle and on-bench Fast Mode in Mercedes-Benz All Keys Lost scenario.

  What s New in Autel G-box3:

  • FASTER, MORE SECURE
  • Supports on-vehicle and on-bench Fast Mode in an All Keys Lost scenario for Mercedes-Benz vehicles using the DA S3 EIS EZS.
  • Bosch engine ECU read and write on BMW F-chassis, PSA group and Volkswagen MQB vehicles

  • G-BOX 3 FEATURES:

    • Faster password calculation for Mercedes-Benz All Key Lost scenario
    • 8x faster password calculation for Mercedes-Benz W172, W204 and W207 ElS types
    • 4X faster password calculation for Mercedes-Benz W209 and W211 El S types
    • BMW ME DDE ISN reading for 20 types of ECUs, including EDC17, MEVD17, MSV90, and MSD87
    • Volkswagen CM IMMO data reading and data synchronization for 18 types, including MQB EDC17 and MED17 ECUs
    • Bosch engine ECU read and write on Volkswagen, BMW, and PSA group vehicles.

    •

      Functions:

      • COMPATIBLE WITH THE MAXIM IM608, IM6O8PRO AND IM508 (WITH THE PURCHASE OF THE XP400).
      • Supports on-vehicle and on-bench Fast Mode in an All Keys Lost scenario for Mercedes-Benz vehicles using the DAS3 EIS EZS
      • Bosch engine ECU read and write on BMW F-chassis and Volkswagen MQB vehicles

      • Gbox 2 vs Gbox3:

        • Gbox2 makes Mercedes all keys lost faster, Gbox3 makes it 4x 8x faster
        • Gbox3 offers faster and more secure reading and writing of Bosch EDC17, MEx17, MD1, and MG1 ECUs and supports on vehicle.

        • Package List:

          • 1pc x Autel G-box3

          • Chrysler 12+8 Cable Adaptor for Autel MaxiSys Elite MS908 MS908P MS908S Pro

            The 12+8 Adapter is Autel s bypass for Chrysler s Security Gateway Module (SGM) which limits an aftermarket scan tools to only reading DTCs and viewing data.
            2018 and newer Chrysler, Dodge, Ram, Jeep, and Fiat now have a secure gateway module or SGM. This SGM will not allow your scan tool to do bidirectional controls on the vehicle. Autel has provided a cable to bypass the SGM.
            The new Chrysler 12+8 Diagnostic Cable allows communication with late model Chrysler, Dodge, Jeep, Fiat & Alfa vehicles.

            The XP400 PRO – Advanced All-in-One Key Programmer

            The XP400Pro is a replacement for XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read Write, and more. Also, added functions for EWS3, W209, NEC, and more.

            The new XP400Pro supports key renewal on 11 key types with additional adapters – IMKPA, and Key Programming Accessories Kit.
