BEA – 10IS40 – Dual Technology Industrial Sensor Utilizing Microwave Motion and Active Infrared Presence Detection

BEA’s IS40 IS40XL are dual technology sensors designed to provide motion and presence detection in industrial applications. The standard IS40 can be mounted from 8 feet to 16 feet to fit any industrial application. For lower mounting heights, BEA’s IS40XL can be mounted from 6 ½ feet to 11 ½ feet. Housed in a rugged IP65-rated enclosure, the IS40 IS40XL will operate in harsh environments, capable of withstanding damage caused by wind-blown dust and rain and hose-directed water.

Technology		Microwave Doppler Radar		Active Infrared
Detection Mode		Motion		Presence
Led Signal		Green (Activation Relay)		Red (Presence Relay)
Transmitter Frequency Wavelength		24.150 GHz		875 nm
Transmitter Power Density		< 5 mW cm2		< 250 mW m2
MAX. Detection Fietection Field IS40 IS40XL		13’ × 16 ½‘ 13’ × 6 ½‘		10’ × 10’ 7 ½‘ × 7 ½‘
Output Hold Time		0.5 s – 9 s		0.5 s
MIN. Detection Speed		2 in s		0 in s to activate detection
Tilt Angle		-8 – 22° and 15 – 45° (Relative to sensor face)		15º – 45º
Mains Frequency		50 – 60 Hz
Power Consumption		< 3.5 W
Relay Output MAX. Contact Voltage MAX. Contact Current MAX. Switching Power		2 relays (free of potential change-over contact) 42 VAC VDC 1 A (resistive) 30 W (DC) 48 VA (AC)
Installation Height IS40 IS40XL		8 – 16’ 6 ½ – 11 ½’
Temperature Range		−22 ºF – 140 ºF

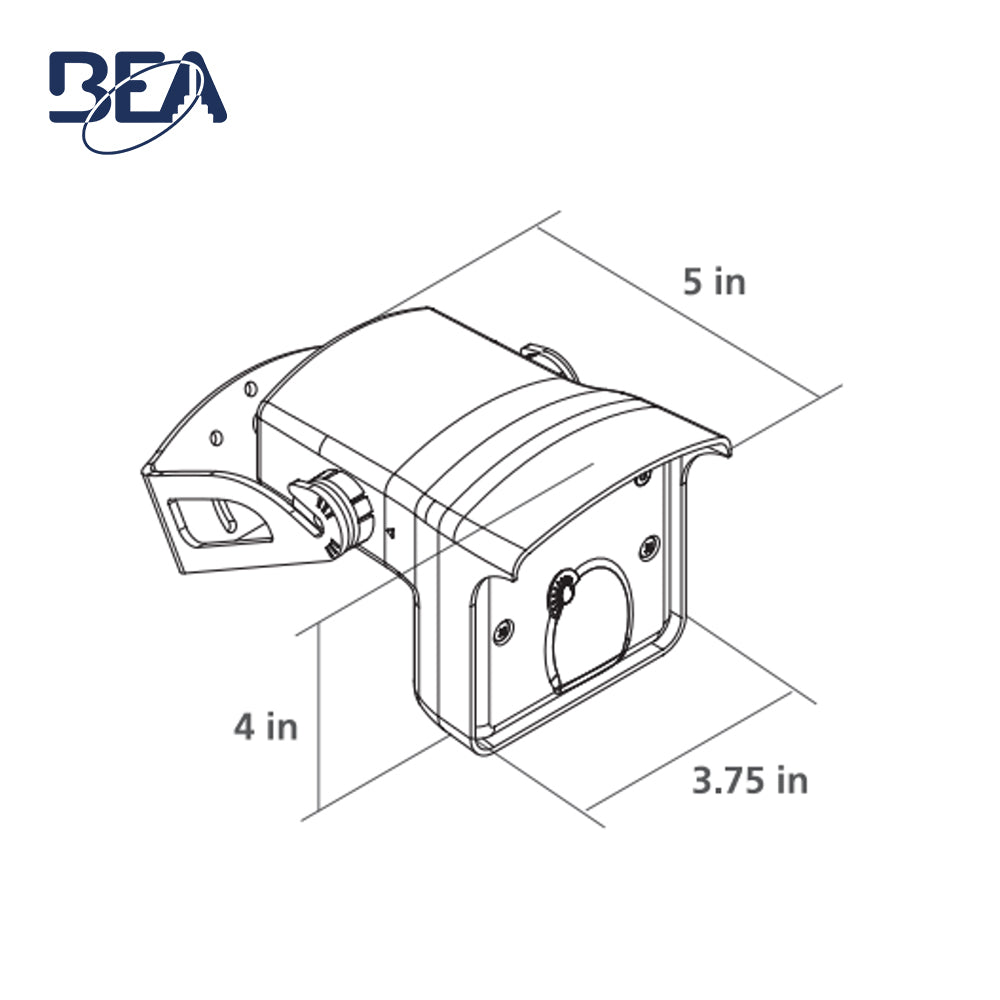

Dimentions		3 3⁄4” (W) × 4” (H) × 5” (L)
Materials		ABS & Polycarbonate
Cable Length		32’
Degree of Protection		NEMA 4 IP65
Norm Conformance		R&TTE: 1999 5 EC; EMC 2004 108 EEC
