Description

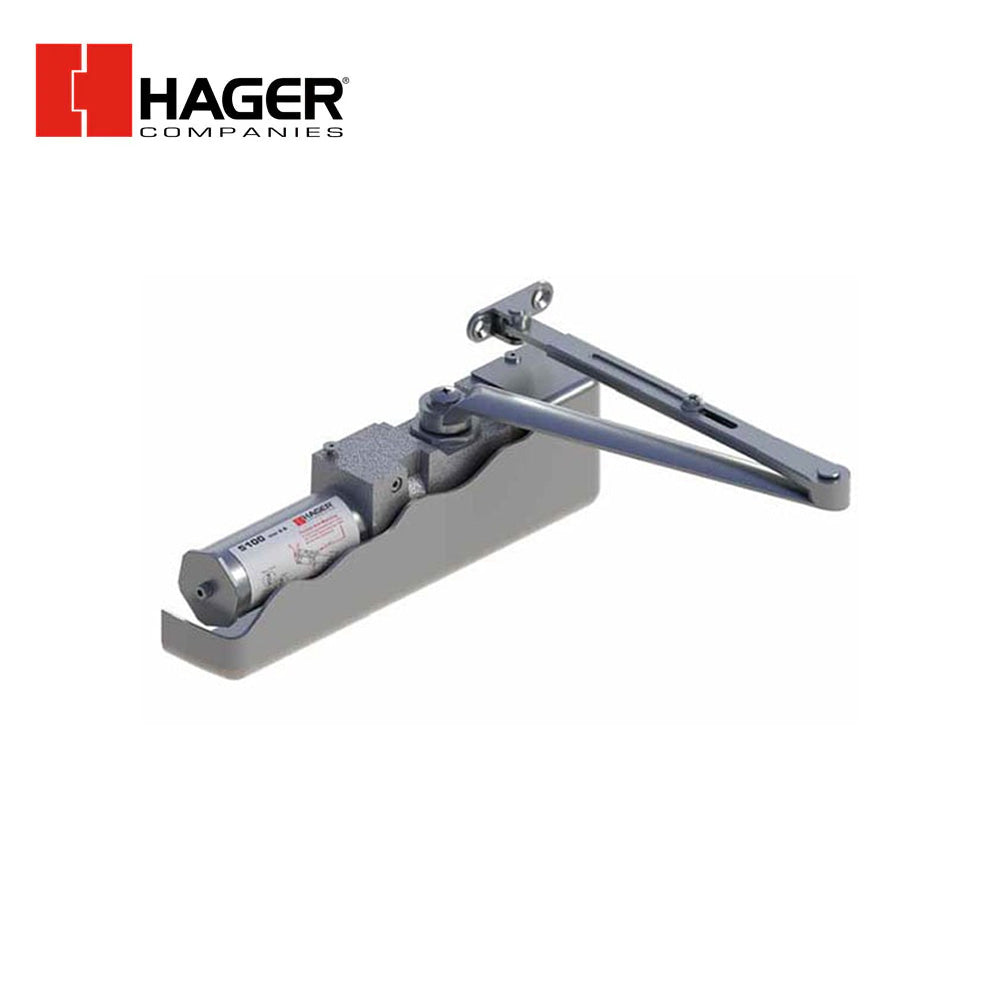

HAGER – 5100-MLT – Surface Closer Push or Pull Side Tri Mount Mounting with Regular Double Lever Arm and Size 1 to 6 Adjustable – Grade 1

5100 Series Closers are heavy-duty door closers constructed of cast iron to be installed on exterior and interior doors that are subject to high use and potential abuse. They are designed and engineered for reliability and superior performance. The commercial applications ideal for these closers include schools, medical facilities, institutions and hospitals as well as office buildings and any entrance door with high foot traffic.

• Cast iron body.
• Includes standard 5103 tri-pack arm.
• MLT (Multi-Mount) – Regular, parallel-arm, and top jamb mount.
• Rust inhibiting primer standard.
• Standard, separate and independent, latch, sweep and backcheck valves.
• Ideal for schools, hospitals, and other high-use environments.
• Ideal choice for doors with a maximum weight of 330 lbs.

• Product Specifications:

  Vendor		Hager Companies
  Manufacturer		Hager
  Grade		Grade 1
  Installation		Commercial
  Unit of Measure		Each
  Limited Warranty		Lifetime
  Fire Rated		3 Hours {A}

  Technical Specifications:

  Type		Surface
  Mounting Location		Push or Pull Side
  Mounting Style		Tri Mount
  Closer Size		1 to 6
  Arm Type		Regular Double Lever Arm
  Hand		Non Handed
  Stop		Yes
  Screw Type		Machine and Wood
  Door Weight		Maximum 300 lbs.
  Special Rust Inhibitor		Yes
  Product Type		Surface Closers

  Downloads:

  • 5100_series-installation-instructions

  • Additional information

  Function	Barrier Free, Hold Open and Barrier Free
