Description

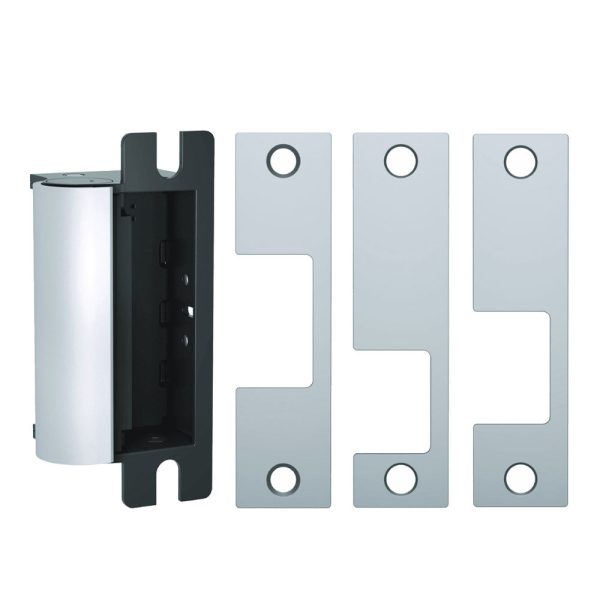

HES – 1006 Series – Electric Strike Complete Body with J KD and KM Faceplates – Grade 1 – 12 24VDC

The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7 8 Inch strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.

Features:

• Stainless steel construction.
• Tamper resistant.
• Static strength 2,500 lbs. (fail secure).
• Dynamic strength 350 ft-lbs. (fail secure).
• Endurance 1,000,000 cycles.
• Fail secure (standard).
• Non-handed.
• Accommodates up to 1 Inch deadbolt.
• Plug-in connector.
• Full keeper shims for horizontal adjustment
• Trim enhancer.
• Dual voltage 12 or 24 VDC continuous duty.
• Internally mounted solenoid.

• Product Specifications:

  Vendor		Assa Abloy
  Manufacturer		HES
  Grade		Grade 1
  Installation		Commercial
  Origin		USA
  Unit of Measure		Each
  Base Material		Stainless Steel
  BAA Qualified		Yes
  Limited Warranty		5 Years
  Fire Rated		3 Hours (A)

  Technical Specifications:

  Function		Fail Secure
  Operating Voltage		12 24 VDC
  Amp Draw		.45 @ 12V .25 @ 24V
  Keeper Size		1 Inch
  Configuration		Universal
  For Use With		Cylindrical Locks, Mortise Exit and Latch Locks
  Fire Rated		Yes
  Holding Force		3000 lbs.
  Frame Application		Metal or Wood
  Product Type		Electric Strikes

  Download:

  • HES 1006 Series Installation Guide (Dec. 2012 – Present)

  • Additional information

  Function	Fail-Safe, Fail-Secure
  Monitoring Option	Electric Strike Only, LBM – Electric Strike with Latchbolt Monitor, LBSM – Electric Strike with Latchbolt Strike Monitor
