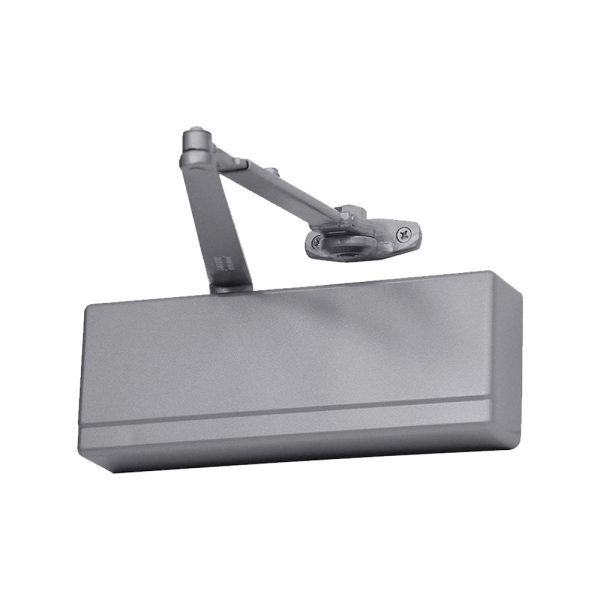

Sargent – 1431 – Powerglide Cast Iron Surface Door Closer – Standard and Top Jamb Applications – Plastic Cover – Grade 1 – WSP (White Suede Powder Coat)

The 1431 Series of surface mounted door closers has been engineered to meet the demands of architects and building owners. The 1431 Series is a complete line of closers for interior and exterior doors with quality and flexibility to meet virtually every application.

• Exceeds 15 Million cycles
• Certified ANSI BHMA A156.4 Grade 1
• UL 10C listed for positive pressure fire test
• UL cUL listed for use on fire rated doors
• User friendly versatile mounting applications permit standard, top jamb, parallel and track installations
• Self sticking templates supplied for most applications

• Benefits:

  • Operates effectively in extreme heat and cold without readjustment
  • Meets ADA requirements in all applications except push-side track applications
  • Versatile mounting permits standard, top jamb, parallel and track installations

  • Arm Types:

    • O – Standard Arm
    • RO – Regular Arm
    • H – Hold Open Arm
    • O8 – Mortise Foot Arm
    • H8 – Mortise Foot Hold Open Arm
    • OLC – Standard Arm for Low Ceiling
    • UH – Universal Hold Arm
    • UO – Universal Standard Arm
    • ROU – Universal Regular Arm
    • OZ – Standard Arm Deep Reveals
    • HZ – Hold Open Arm for Deep Reveals
    • OZA – Standard Arm for Extra Deep Reveal
    • HZA – Hold Open Arm for Extra Deep Reveal

    • Finish:

      • 10BE – Dark Anodized, Satin Bronze
      • EB – Sprayed Bronze Enamel to match Dark Satin Bronze
      • ED – Sprayed Bronze Enamel to match Dark Statuary Bronze
      • EN – Sprayed Aluminum Enamel
      • EP – Sprayed Bronze Enamel to match Satin Bronze
      • EAB – Sprayed Brass Enamel
      • BSP – Black Suede Powder Coat
      • WSP – White Suede Powder Coat

      • Product Specifications:

        Manufacturer		Sargent
        Grade		Grade 1
        Installation		Commercial
        Unit of Measure		Each
        Base Material		VARIES
        Fire Rated		3 Hours {A}

        Technical Specifications:

        Construction		Heavy Duty Aluminum Alloy
        Function		Door Closer
        Interior or Exterior		Universal
        Handing		Non-Handed
        Door Width		24 – 48
        Diameter Piston		1-1 2
        Projection from Wall		2-1 4
        Application		Standard, Top Jamb, Parallel
        Fasteners		Machine Screws and self tapping screws provided for closer and arm
        Max. Door Opening		120° Standard 180° with alternate mounting or corner bracket
        ADA		Meets ADA requirements in all applications, except Push Side Track application
        Fire Rating		UL 10C listed for positive pressure fire test
        Certifications		Certified ANSI BHMA A156.4 Grade 1







        Download:

        • Catalog
        • Standard Duty Arm Installation Instruction

        • Additional information

        Arm Type	O – Standard Arm, H – Hold Open Arm, O8 – Mortise Foot Arm, H8 – Mortise Foot Hold Open Arm, OLC – Standard Arm for Low Ceiling, UH – Universal Hold Arm, UO – Universal Standard Arm, OZ – Standard Arm Deep Reveals, HZ – Hold Open Arm for Deep Reveals, OZA – Standard Arm for Extra Deep Reveal, HZA – Hold Open Arm for Extra Deep Reveal
        Handed	Right Hand, Left Hand
        Device	None (Standard), TB – Through Bolt (1-3/4 Inch), DA – Delayed Action
