Description

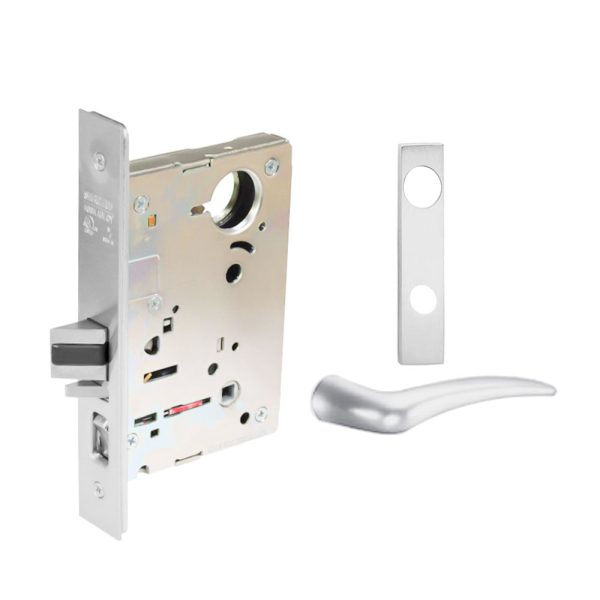

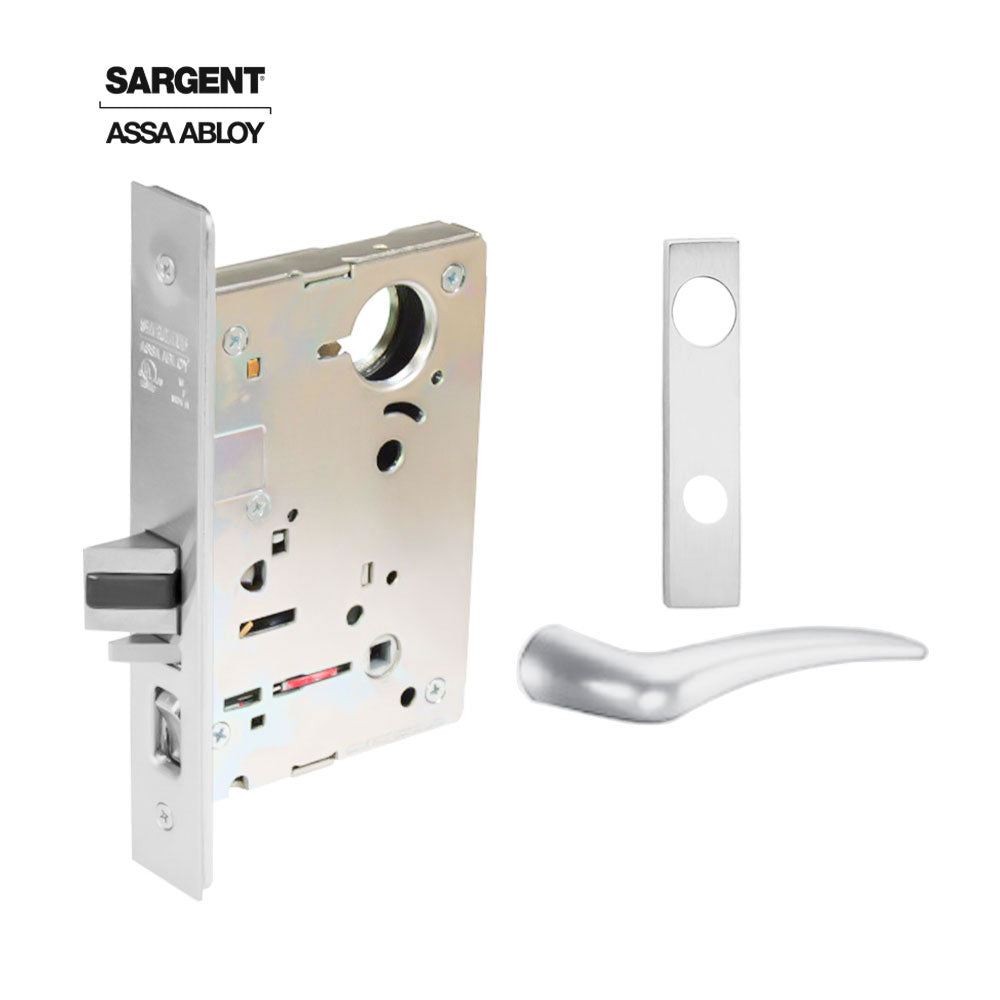

Sargent – 8204 – Storeroom Mortise Lock – Heavy Duty Less Cylinder – LFIC – Keyed Different – Escutcheon Trim Function – Grade 1 – WSP (White Suede Powder Coat)

8200 Series mortise locks offer maximum security, performance, and durability with high-quality components. It s the industry benchmark for mortise locks, featuring a multi-functional lock body with a variety of lever and escutcheon styles. The lock is robust, easy to install, and has a redesigned status indicator option with a large viewing window for assurance. The electromechanical version operates from 12 to 24VDC, with Eco-Flex technology that significantly reduces power consumption up to 96%.

Feature:

• Heavy duty lever-style mortise lock.
• Utilizes Eco-Flex technology on all electromechanical functions, creating up to 89% energy savings.
• UL Cycle Above and Beyond test completed at 16 million cycles (Verification ID: V584148).
• Integrates with all SARGENT key systems (Degree, Signature, KESO, and XC)
• 8 lever designs, 4 roses designs, and 16 architectural finishes offered
• Available with behavioral health trim.
• Status indicators available.
• Patented design and construction.
• 10-years Manufacturer warranty.

• Product Specifications:

  Manufacturer		Sargent
  Grade		Grade 1
  Origin		USA
  Unit of Measure		Each
  Application		Complete Lock
  Color		WSP (White Suede Powder Coat)
  BAA Qualified		Yes
  Fire Rated		2 Hours {B}

  Technical Specifications:

  Function		04-Storeroom or Closet
  ANSI Function		F07 – Storeroom Exit
  Cylinder Type		LFIC
  Handing		Field Reversible
  Door Thickness		1-3 4
  Lock Face Size		8 x 1-1 4
  Bolt Projection		3 4 Latch
  Std. Strike Number		82-0110
  Std. Strike Type		ASA
  Std. Strike Height		4-7 8
  Std. Strike Width		1-1 4
  Screws		Combination
  Product Type		Mortise Lock
  Lever Design		A, B , E, F, J, L, P, W – Lever
  Escutcheon Design		LE1 LW1 WT LS

  Benefits:

  • Strength and Reliability: Far exceeds independently verified testing, making it the strongest and most durable mortise lock in the industry. Verified for over 14 million cycles.

  • Security: Several security features provide additional resistance against vandalism and unauthorized entry.

  • Flexibility and Aesthetics: Aesthetic design combined with a variety of functions, lever designs and architectural finishes match a wide range of styles and make it ideal for all types of applications (e.g. offices, hospitals, behavioral health environments, schools universities).

  • Ease of Install and Maintenance: Multifunctional lock body makes switching functions on-site easy and reduces inventory requirements.

  • Download:

    • Installation Instruction

    • Additional information

  Lever	A, E, F, W, B, L, P, J
  Escutcheon Design	LE1, LW1, WT, LS
