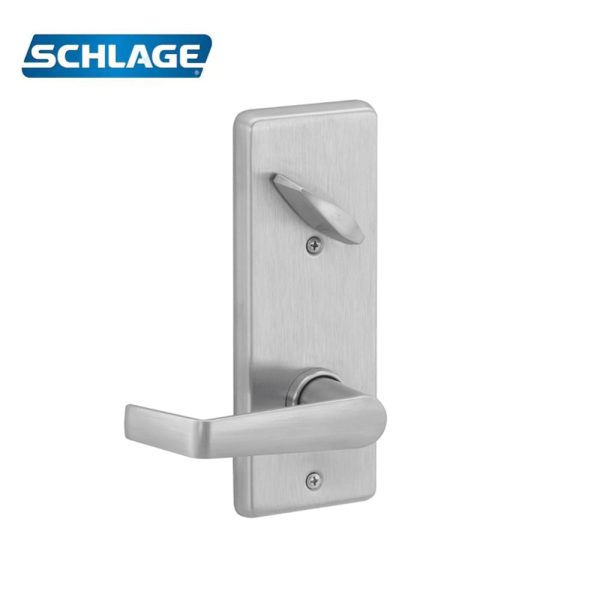

Schlage – S210 – Interconnected Entrance Single Locking with Schlage FSIC Less Core – Keyed Different – Grade 2

Schlage S200 interconnected locks are designed to offer easy egress and dependable security. Focusing on safety, security and long-lasting performance, this lock is tested to exceed 400,000 ANSI cycles. The S200 Series locks are designed for a wide variety of applications ranging from military housing to multi-family and small hotel motel buildings. Easy to install, service, and maintain, this lock keeps people and property secure.

S210 – Entrance, Single Locking:

• Deadbolt operated by key from outside or by turning unit from inside.
• Bolt automatically deadlocks when fully thrown.
• Latchbolt retracted by lever from either side.
• Turn inside lever to simultaneously retract deadbolt and latchbolt for immediate exit.

• Features & Benefits:

  • Everest 29™ patented keys are standard for commercial applications.
  • Heat-treated steel locking components.
  • 3 door reinforcement to protect against kick-in attacks.
  • Five available functions (Entrance, Classroom, Storeroom, and Single Dummy).
  • Compatible with Full Size Interchangeable Core (FSIC).
  • Four lever designs.
  • One matching rose and interior escutcheon.

  • Function:

    • S210, Entrance (single locking)
    • S251, Entrance (double locking)
    • S270, Classroom
    • S280, Storeroom
    • S290, Single dummy trim

    • Certifications:

      • Meets BAA (Buy American Act).
      • UL cUL listed for A label single doors, 4 x 8; the letter F and UL symbol on latch front indicate listing.
      • UL437 listed locking cylinder optional; specify Primus 20-500 Series cylinder.
      • California Referenced Standards Code: all levers with a return to door of 1 2 (64 mm) or less comply.
      • Meets ADA requirements.

      • Product Specifications:

        Vendor		Allegion
        Manufacturer		Schlage
        Grade		Grade 2
        Installation		Commercial
        Unit of Measure		Each
        ANSI Number		ANSI A156.12-2071
        Function		210-Entrance Single Locking
        ANSI Function		F95 – Interconnected Entrance Single
        Cylinder Type		Schlage FSIC Less Core
        Keying		KD – Keyed Different (Standard)
        Door Thickness		1-3 4 in.
        Std. Latch Number		16-481
        Std. Latch Type		Combination Dead Latch and Bolt
        Std. Latch Backset Dim		Adjustable 2-3 8 In. and 2-3 4 In.
        Lock Face Size		2-1 4 In. x 1 In.
        Bolt Projection		1 2 In. Latch, 1 In. Bolt
        Std. Strike Number		10-094 & 10-001
        Std. Strike Type		T-Square Corner
        Std. Strike Height		2-3 4 In.
        Std. Strike Width		1-1 8 In.
        Dust Box		Plastic
        Product Type		Interconnected Locks

        Downloads:

        • Schlage S Series Catalog

        • Additional information

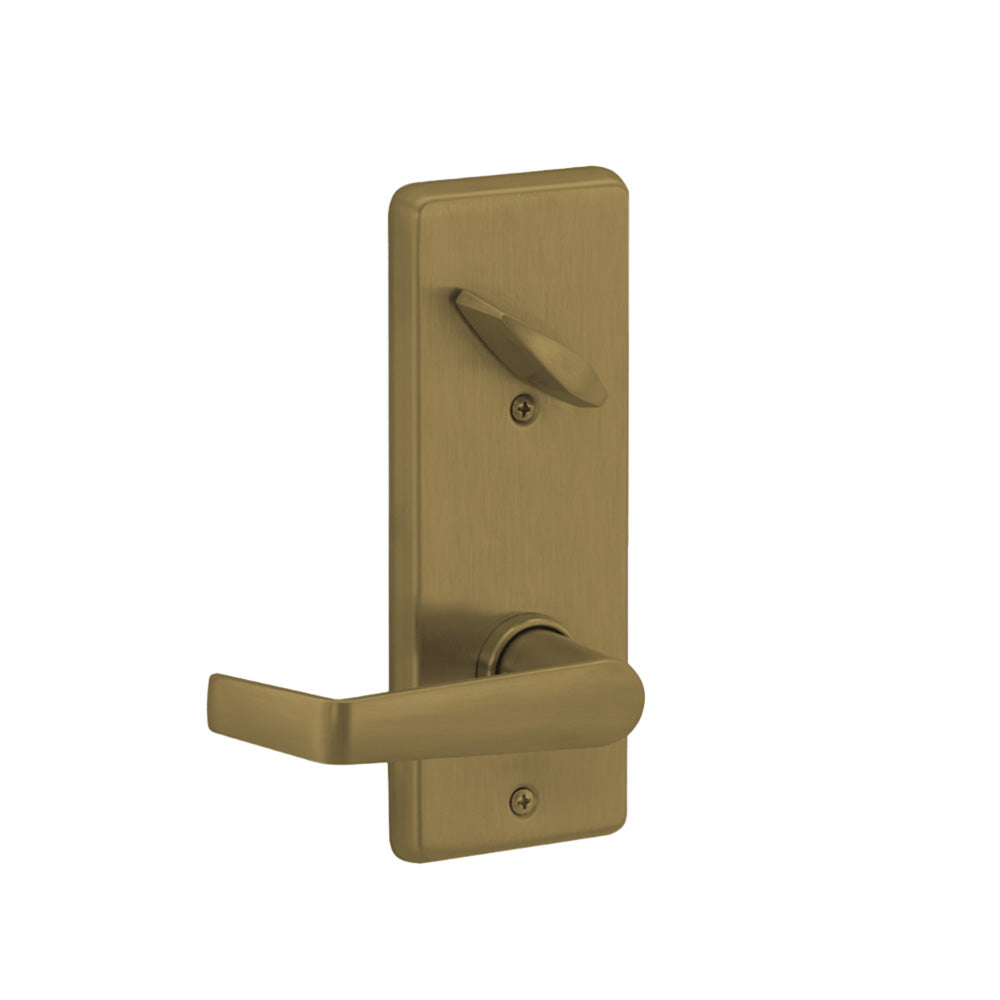

        Color	626 (Satin Chrome), 605 (Bright Brass), 606 (Satin Brass), 609 (Antique Brass), 613 (Oil Rubbed Bronze), 619 (Satin Nickel), 625 (Bright Chrome)
        Handed	None, Right, Left
        Lever Design	SAT – Saturn, JUP – Jupiter, FLA – Flair, NEP – Neptune
