Description

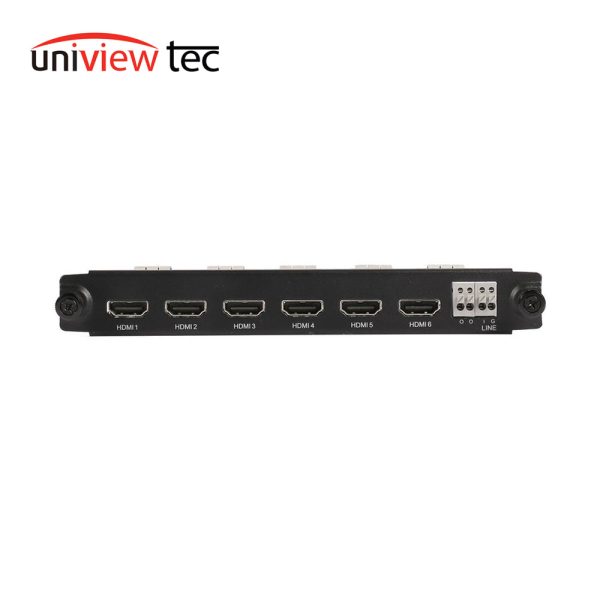

Uniview Tec FB-HDMI6-C-NB 6-ch HDMI Output Decoder Card

Key Features:

• Support 4 or 6 channels of additional HDMI outputs
• For use in video walls
• Supports NR6416 & NR12816 network recorders only
• HDMI resolution up to 4K, 3840 x 2160
• H.265 & H.264 standards support

• Specifications:

  Video Test Monitor:

  HDMI Port		Supports 4 or 6 ch
  HDMI Output 4-ch		Ports HDMI1 & HDMI3: 1920 x 1080p 60Hz, 1920 x 1080p 50Hz, 1600 x 1200 60Hz, 1280 x 1024 60Hz, 1280 x 720 60Hz, 1024 x 768 60Hz Ports HDMI2 & HDMI4: 4K (3840 x 2160) 60Hz, 4K (3840 x 2160) 30Hz, 1920 x 1080p 60Hz, 1920 x 1080p 50Hz, 1600 x 1200 60Hz, 1280 x 1024 60Hz, 1280 x 720 60Hz, 1024 x 768 60Hz
  HDMI Output 6-ch		Ports HDMI1 & HDMI2 & HDMI4: 1920 x 1080p 60Hz, 1920 x 1080p 50Hz, 1600 x 1200 60Hz, 1280 x 1024 60Hz, 1280 x 720 60Hz, 1024 x 768 60Hz Ports HDMI3 & HDMI5 & HDMI6: 4K (3840 x 2160) 60Hz, 4K (3840 x 2160) 30Hz, 1920 x 1080p 60Hz, 1920 x 1080p 50Hz, 1600 x 1200 60Hz, 1280 x 1024 60Hz, 1280 x 720 60Hz, 1024 x 768 60Hz
  Camera Capability (fps): 4-ch		8 x 4K @ 30, 16 x 4MP @ 30, 32 x 1080P @ 30, 64 x 720P
  Camera Capability (fps): 6-ch		12 x 4K @ 30, 24 x 4MP @ 30, 48 x 1080P @ 30, 96 x 720P
  Multi-window		1 3 4 5 6 7 8 9 16
  Working Humidity		10% ~ 90%
  Weight		1 Kg (2.2 lb)

  Specifications Sheet
