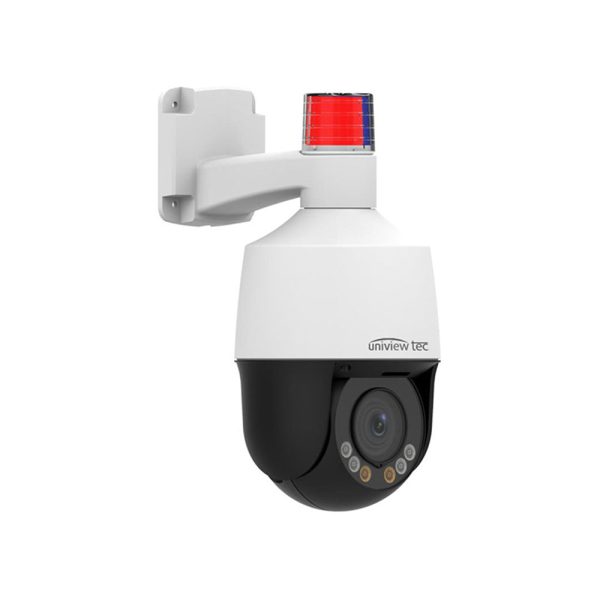

Uniview Tec IPCSD54X 5MP 4x Zoom Active Deterrence PTZ Dome Camera

Features:

• Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
• Exceptional Video Quality with 5MP 2880 x 1620 Resolution, with Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
• Light Hunter Technology for ultra-high image quality in low light applications and Smart IR LED Lights for 0 Lux Night Time Operation up to 164 Feet
• 2.8 ~ 12mm, 4x Optical motorized zoom and automatic focus lens
• TRUE Day Night and Wide Dynamic Range Functionality for all Lighting Conditions
• Built-In Mic & Speaker, Backlight Compensation and 3D DNR (Digital Noise Reduction)
• Pan Tilt Speed up to 50° sec with up to 256 Preset Positions
• Triple Video Streams; ONVIF Profile S Compliant
• Intelligent perimeter protection with Active Deterrence with Strobe Light and Audio Alarm
• 12VDC PoE Power Options and Built-in Micro-SD Card Slot enables up to 256GB storage
• Supported by uniview tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Devices

• Specifications:

  Camera
  Sensor		1 2.7 , progressive scan , 5 megapixel CMOS
  Lens		2.8 ~ 12mm, automatic focusing and motorized zoom lens
  Angle of View (H x V)		30.6° ~ 104.1° x 17.4° ~ 54.9°(wide ~ tele)
  Shutter		Auto Manual, 1 ~ 1 100000 s
  Minimum Illumination		Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
  Day Night		IR-cut filter with auto switch (ICR)
  Digital noise reduction		2D 3D DNR
  IR LED Range Wavelength		Up to 50m (164ft) IR range 850nm
  WDR		120dB
  Video Compression		Ultra 265, H.265, H.264, MJPEG
  Maximum Frame Rate Stream		Main Stream: 5MP (2880 × 1620) @ 30fps Sub Stream: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 × 576) @ 30fps
  HLC, BLC, Flip		Supported
  OSD, Privacy Mask, Motion Detection & RO		Up to 8 areas
  Pan and Tilt Speed; Presets		0°~345° Pan, 50° s max speed; -10° ~ 110° Tilt, 40° s max speed; 256 presets
  Network
  Protocols		IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
  Compatible Integration		ONVIF Profile S, API
  Network		RJ45, 10M 100M Base-TX Etherne
  Intelligent Perimeter Protection		Cross Line, Intrusion, Enter Area, Leave Area detection; Motion detection
  Micro-SD, up to 256GB; Automatic Network Replenishment (ANR)		Micro-SD, up to 256GB; Automatic Network Replenishment (ANR)
  General
  Power		12VDC + – 25%, PoE (IEEE802.3 af); Max 18W
  Dimensions (Ø x H) & Weight		Φ133 x 269.4mm (Φ5.2 x 10.6”); 1.13kg (2.49lb)
  Audio I O & Compression		Built-in Mic & Speaker; G.711U and G.711A
  Operating Temperature & Humidity		-20°C ~ +60°C (-4°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing)
  Conformity Certifications		IP66, CE, FCC

  Download:

  • User Manual
  • Installation Guide
  • Quick Set Up Guide
