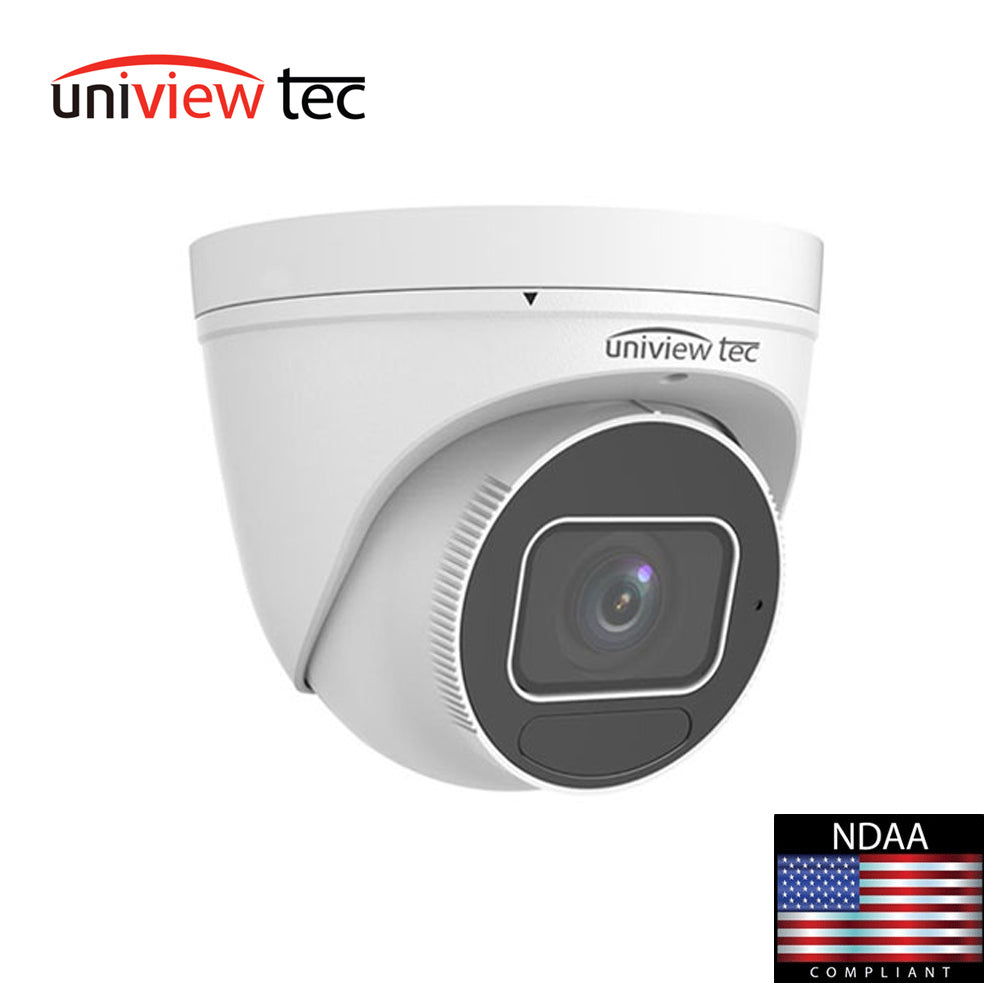

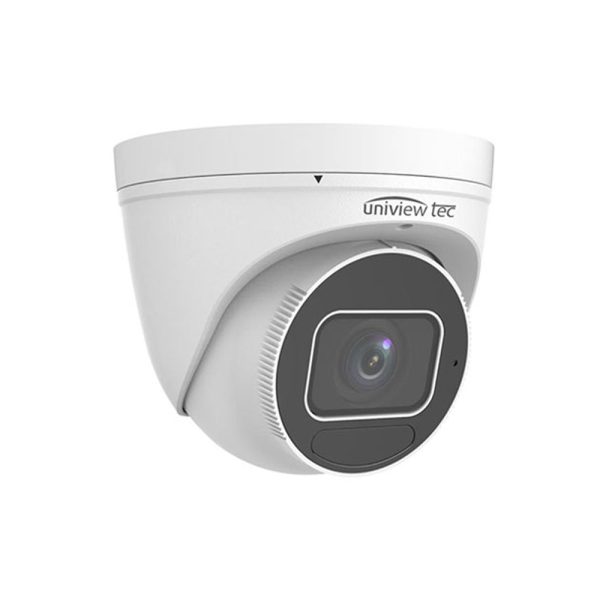

Uniview Tec IPT5213MX IR Turret Camera 2.7 to 13.5mm 5MP True Day Night WDR LightHunter Varifocal Lens Built-in Microphone

Key Features:

• Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
• LightHunter illumination technology ensures ultra-high image quality in low light applications
• Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
• Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
• Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 131 Feet
• 2.7 ~ 13.5mm motorized varifocal, automatic focus lens
• TRUE Day Night and WDR functionality for all Lighting Conditions
• One-way Audio w built-in microphone, Corridor View, Backlight Compensation and 3D DNR
• Powerful Intelligent Video Analytics, Triple Video Streams; ONVIF Profile S Compliant; PoE & 12VDC Power Options
• Built-in Micro-SD Card Slot enables local storage up to 256GB
• IP67 & IK10 Rated Housing, with Optional Wall and Pendant Mounts Available
• Supported by uniview tec Guard Station Software and Guard Viewer Mobile App s for iPhone and Android Devices

• Specifications:

  Camera
  Sensor		1 2.7 , progressive scan , 5 megapixel, CMOS
  Lens		2.7~13.5mm, varifocal automatic focusing and motorized zoom lens
  Angle of View (H x V)		106.25° ~ 30.42° x 56.36° ~ 17.22° (wide ~ tele)
  Shutter		AAuto Manual, 1 ~ 1 100000 s
  Minimum Illumination		Color: 0.002 Lux (F1.2, AGC ON); 0 Lux with IR
  Day Night		IR-cut filter with auto switch (ICR)
  Digital noise reduction		2D 3D DNR
  IR LED Range Wavelength		Up to 40m (131 ft) IR range 850nm
  WDR		120dB
  Video Compression		Ultra 265, H.265, H.264, MJPEG
  H.264 code profile		Baseline profile, Main Profile, High Profile
  Maximum Frame Rate Stream		Main Stream: 5MP (2880 x 1620) @25 fps; 4MP (2560 x 1440) @25 fps; 3MP (2304 x 1296) @25fps; 2MP (1920 x 1080) @30 fps Sub: 720P (1280 x 720) @ 30fps Third Stream: D1 (720 × 576) @ 30fps
  HLC, BLC, 9:16 Corridor, Defog, Flip		Supported
  OSD, Privacy, Motion & ROI		Up to 8 areas
  Network
  Protocols		IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP
  Compatible Integration		ONVIF (Profiles S, G, T), API
  Network		RJ45, 10M 100M Base-TX Ethernet
  Intelligent Video Analytics		Cross line, intrusion, enter area, leave area detection
  Local Storage		Micro-SD, up to 256GB
  Network Storage		Automatic Network Replenishment (ANR)
  General
  Power		12VDC + – 25%, PoE (IEEE802.3 af); Max 7W
  Dimensions (Ø x H) & Weight		Φ129 x 110mm (Ø5.1 x 4.3”); 0.67kg (1.48lb)
  Audio I O & Compression		1 0, w built-in microphone; G711
  Operating Temperature & Humidity		-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing)
  Conformity Certifications		IP67, IK10, CE, FCC

  Download:

  • Specifications Sheet

  • User Manual

  • Installation Guide

  • Quick Setup Guide
