Description

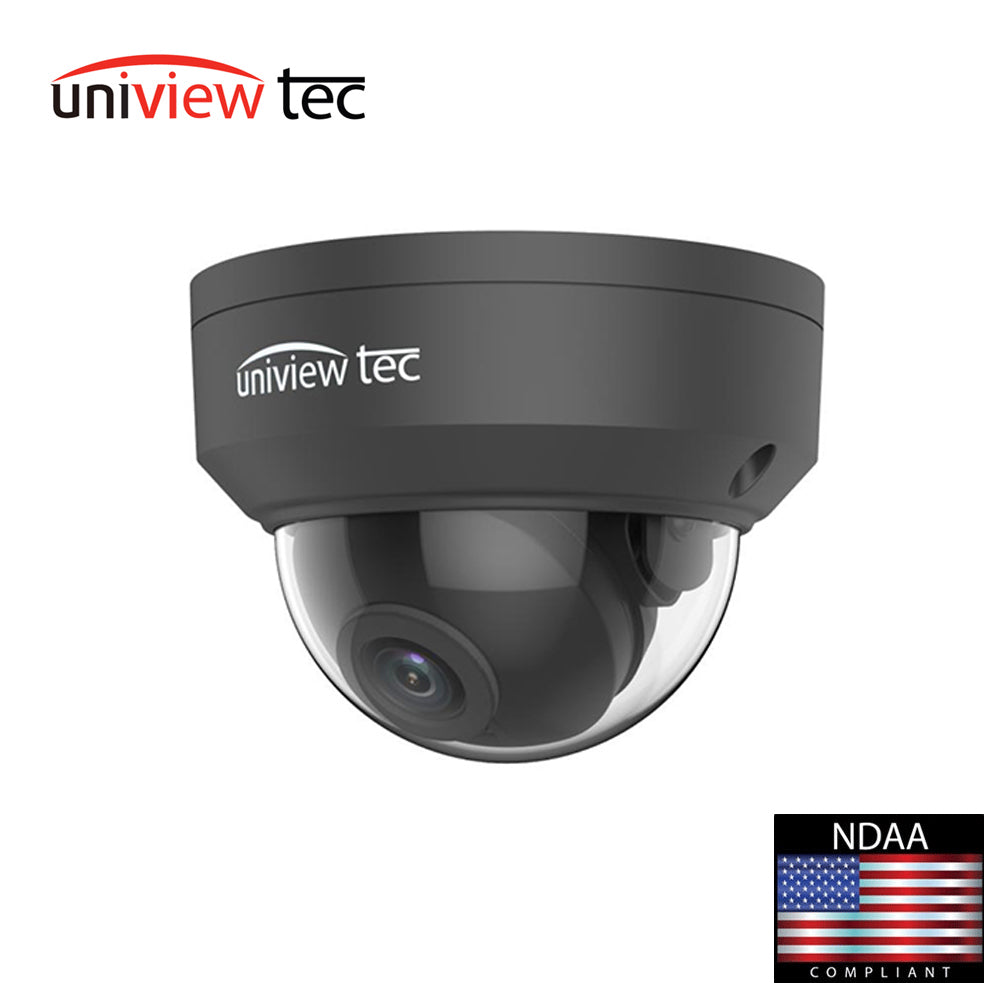

Uniview Tec IPV4E28BX IR Vandal Dome Camera 2.8mm 4MP True Day Night WDR

Key Features:

• Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
• Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
• Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
• Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 98 Feet
• 2.8mm fixed lens
• TRUE Day Night and WDR functionality for all Lighting Conditions
• Corridor Mode, Backlight Compensation and 3D DNR (Digital Noise Reduction)
• Triple Video Streams and ONVIF Profile S Compliant
• Intrusion Detection Analytics
• PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
• Built-in Micro-SD Card Slot enables local storage up to 256GB
• 3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Rated Vandal Housing
• Supported by uniview tec Guard Station Software and Guard Viewer Mobile App s for iPhone and Android Device

• Specifications:

  Camera
  Sensor		1 3 , progressive scan , 4 megapixel, CMOS
  Lens		2.8mm @ F1.6
  Angle of View (H x V)		101.1° x 55.3°
  Shutter		Auto Manual, 1 ~ 1 100000 s
  Minimum Illumination		Color: 0.003 Lux (F1.6, AGC ON); 0 Lux with IR
  Day Night		IR-cut filter with auto switch (ICR)
  Digital noise reduction		2D 3D DNR
  IR LED Range & Wavelength		Up to 30m (98 ft) IR range; 850nm
  WDR		120dB
  Video Compression		Ultra 265, H.265, H.264, MJPEG
  H.264 code profile		Baseline profile, Main Profile, High Profile
  Maximum Frame Rate Stream		Main: 4MP (2688 x 1520) @ 25fps Sub: 720P (1280 x 720) @ 30fps
  HLC, BLC, 9:16 Corridor Mode, Defog, Flip		Supported
  OSD, Privacy Mask, Motion Detection & ROI		Up to 8 areas
  Network
  Protocols		IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, 802.1x, SNMP
  Compatible Integration		ONVIF (Profile S, G, T), API
  Network		RJ45, 10M 100M Base-TX Ethernet
  Intrusion Detection Analytics		Cross Line, Intrusion, Motion & Tampering Detection
  Local Storage		Micro-SD, up to 256GB
  Network Storage		Automatic Network Replenishment (ANR)
  General
  Power		12VDC + -25%, PoE (IEEE802.3 af); Power consumption: Max 5.5W
  Dimensions (Ø x H) & Weight		Φ109 x 81 mm (Ø4.3” x 3.2”); 0.35kg (0.77lb)
  3-Axis Adjustment Range		Pan: 3° ~ 360° Tilt: 0° ~ 68° Rotate: 3° ~ 360°
  Operating Temperature & Humidity		-30°C ~ +60°C (-31°F ~ 140°F); Humidity: 10%~ 95% RH (non-condensing)
  Conformity Certifications		IP67, IK10; CE, FCC
