Description

Uniview Tec UHDB5EC28X 5MP HD Analog, DWDR, Easy Color Hunter, Bullet Camera

Features:

• Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
• High Video Quality with 5MP, 2880 x 1620 Resolution
• High-Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
• TVI, AHD, CVI and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVR’s for Maximum Stability and Performance
• ColorHunter Technology allows 24 7 Full-Color Imaging with White Light Illumination
• 2.8mm fixed lens
• TRUE Day Night and DWDR functionality for all Lighting Conditions
• Built-in Microphone for High Quality Audio Transmission via Coax Cables
• Supports 180° horizontal flip, 180° vertical flip
• Easy to Operation On Screen Display (OSD) Configuration Menu
• 12VDC Power Options; IP67 Weather Resistant Housing with Optional Mounts
• Supported by uniview tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices

• Specifications:

  Sensor
  Pixel		5MP
  Size		1 2.9 CMOS
  Minimum illumination		0.005 lux (F1.4, AGC ON) 0 lux (white light on)
  Lens
  Focal Length		2.8mm
  Angle of View (H x V)		110° x 57°
  IR Illumination
  White Light		One Illuminator; 20M (65ft)
  Video
  Resolution		5MP @ 25fps: 2880 × 1620; 5MP @ 20fps: 2592 × 1944; 5MP @ 12.5fps: 2592 × 1944 4MP: 2560 × 1440 1080P: 1920 × 1080
  Frame rate		TVI: 5MP @ 20fps, 5MP @ 12.5fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps AHD: 5MP @ 20fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps CVI: 5MP @ 25fps, 4MP @ 30fps, 4MP @ 25fps, 1080P @ 30fps, 1080P @ 25fps CVBS: PAL, NTSC
  Shutter time		PAL: 1 25s-1 50000s NTSC: 1 30s–1 50000s
  Exposure mode		4 modes: Global (default), BLC, HLC, DWDR
  Day Night		24 7 full-color imaging
  Digital noise reduction		2D
  White balance		Two modes: Auto (default), Manual
  WDR		DWDR
  Flip		Supports 180° horizontal flip, 180° vertical flip.
  Interface
  Power		5.5mm power interface
  Video output		BNC, supports TVI AHD CVI CVBS
  Operating Environment
  Temperature		-30℃ to 60℃ (-22℉ to 140℉)
  Humidity		≤95% (RH, non-condensing)
  Surge protection		4KV
  Ingress protection		IP67
  General
  Power		DC 12V(±25%), with reverse polarity protection and surge protection, Max 2.4W

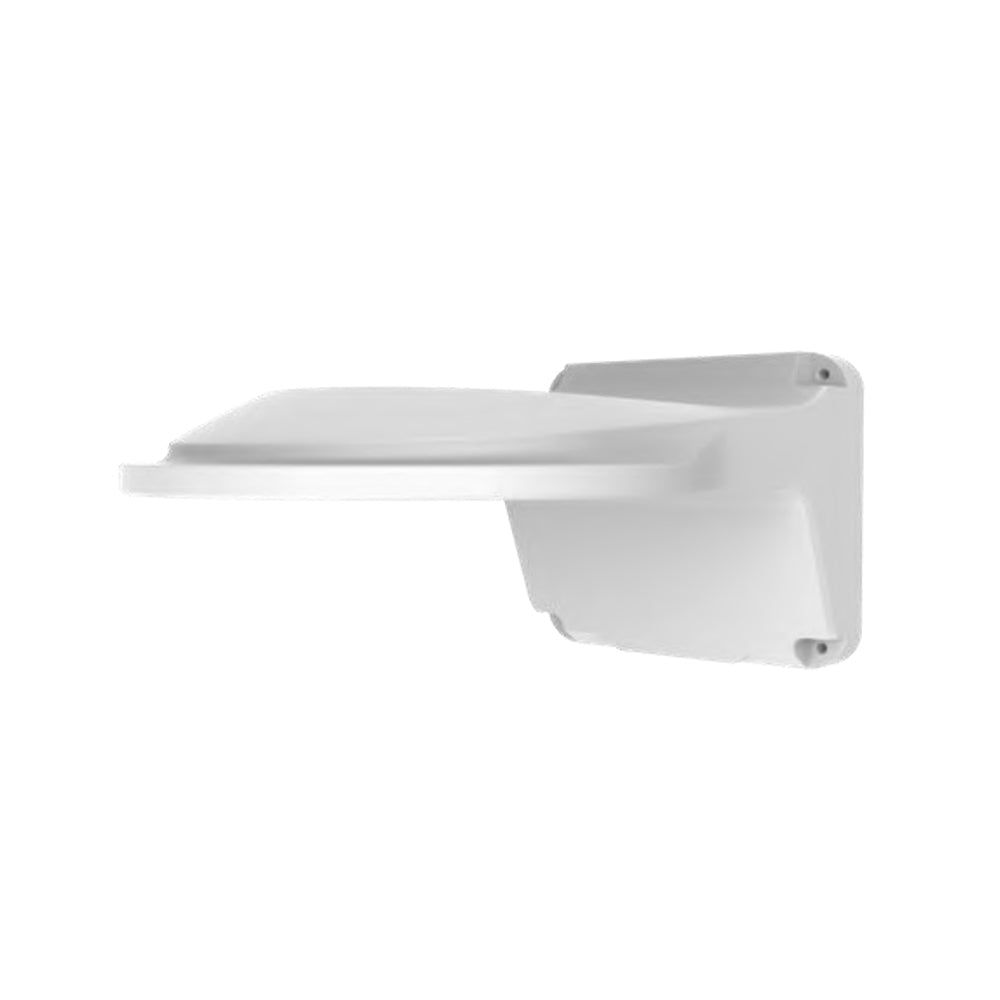

  Mount		3D bracket supplied, surface mount (default); optional junction box and pole mount available
  Dimensions (L x W x H)		142 x 60 x 65mm (5.6 x 2.4 x 2.6”)
  Material		Plastic
  Weight		145g (0.32lb)
  Certification		CE, FCC
