IMMO DATA TOOL (FILE MAKE KEY) Supports Jaguar – Land Rover – Porsche – Volvo – Mitsubishi – and others

For some cars, key programming and other settings can t be finished via OBDII. KEY TOOL PLUS gives amazing strength to solve the dilemma by delivering File Make Key function which can be used to add keys for them. This very function features generating transponder via reading related transponder data of the car immo module directly.

File make key, to generate a car key via a data file. Users need to use the specific device to read the immo data, and generate a boot transponder to directly start the car, no need to match the original car.(Users may need to rewrite the data to the immo box when doing the programming process on some car models.)

Xhorse PAD supports File Make Key function for common car models and motorcycles. we can easily find the car models we need by brand area, brand name, and A-Z word search.

WE LIBERATE YOUR APPLICATION PROGRAM INTERFACE

Maintenance Function Meet Your Work Demands in Every Way. KEY TOOL PLUS supports maintenance light reset, electric parking brake, TPMS, battery matching, throttle program, injector programming, steering angle programming, bitting decode, gearbox programming, headlight programming, etc. More maintenance functions will be released soon.

CONTROL KEY CUTTING MACHINES DEVELOPED BY XHORSE

KEY TOOL PLUS is available to control the key cutting machines and PANDA), to perfectly work as an operation screen. By using KEY TOOL PLUS, completely free your mobile phones.

Cloud Diagnosis Mode-C: After keytool plus start the C mode of cloud diagnosis, it will generate tghe local C-terminal ID and send C-terminal ID to customer who provide remote service. Customer use cloud diagnosis B-terminal Xhorse device, after inputting C ID and connect to the Plus pad for remote diagnosis, programming, coding, matching, maintenance and other functions.

Other Special Functions: Remote renew, Set type of VVDI Special TP, Unlock Toyota Smart Key, Detect remote, VVDI remote repair calibration, VVDI smart key clone, VVDI smart key customization, remote charge battery, Honda cycle key renew, 8E remote upgrade unlock, XM smart key customization, Toyota smart key frequency setting.

More Functions coming soon Eg. OBD diagnosis and MQB49 immo programming have just been released on KEY TOOL PLUS and it’s projected to support DOIP, CAN-FD, Toyota 8A smart key in the near future. NAME OF PORTS:

Light sensor:

detect the brightness in the surrounding environment

Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency)

• Support reading, writing, and cloning common immo transponders
• Support reading common ID transponders
• Support reading common IC transponders
• Support frequency detection of common vehicle remotes
• Immo transponder placement hole for vehicle immo transponders
• USB charging port: support standard fast charge adapter and standard Type-C port DC-5V input.
• PS2 port for remote programming
• DB15 port: support standard & optional programming adapters with DB15 port
• DB25 port for OBD matching

• Benz Infrared (IR) port: support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader.

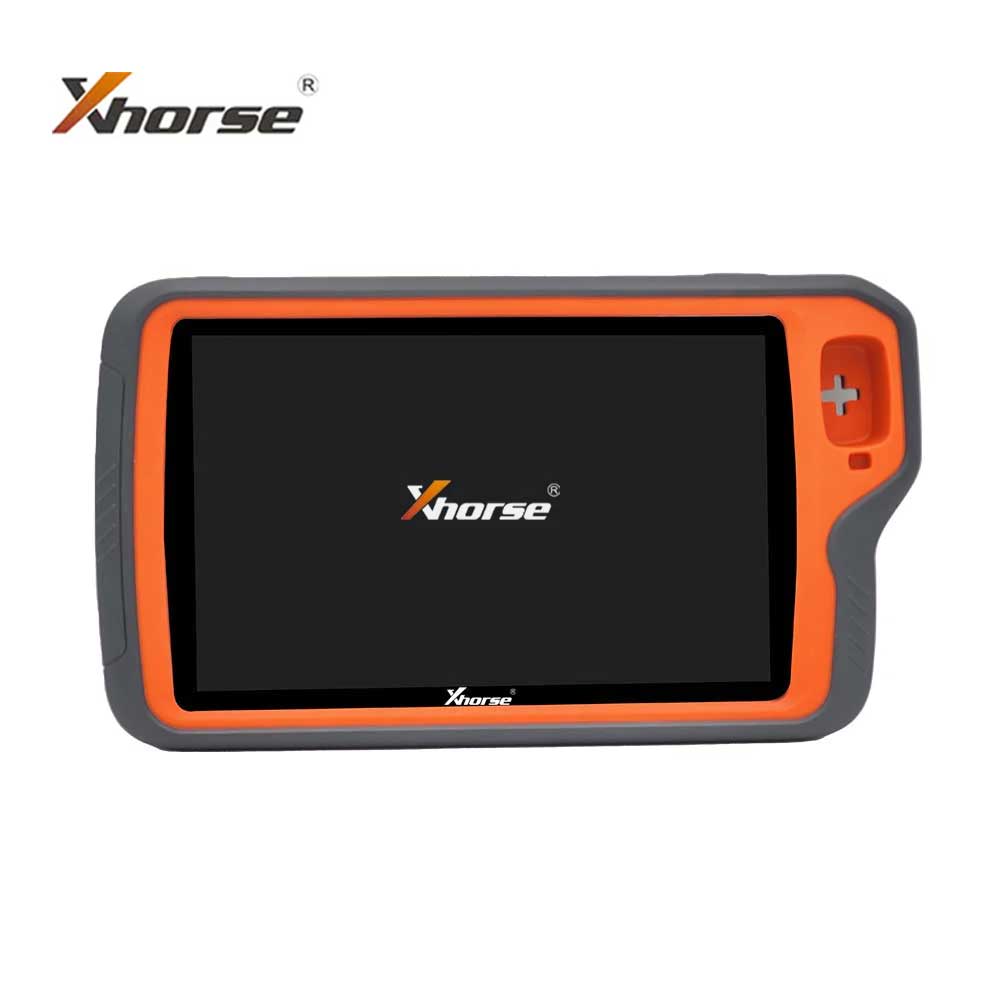

  Xhorse VVDI Key Tool Plus Full Package List:

  • KEY TOOL PLUS
  • User Manual
  • Certification and warranty card
  • Charger
  • USB3.0 TYPE-C cable
  • OBD_DB25 cable
  • OBD_KlA_10 connector
  • OBD_KIA_20 connector
  • 0BD Honda 3 connector
  • Remote_PS2 programming cable
  • Transponder box
  • Prog_DBI5_15 cable
  • Prog EEPROM adapter
  • Benz IR adapter
  • Benz NEC1 adapter
  • Benz NEC2 adapter
  • Benz NEC3 adapter
  • Benz power adapter
  • 9S12xE cable
  • MCU cable

  •

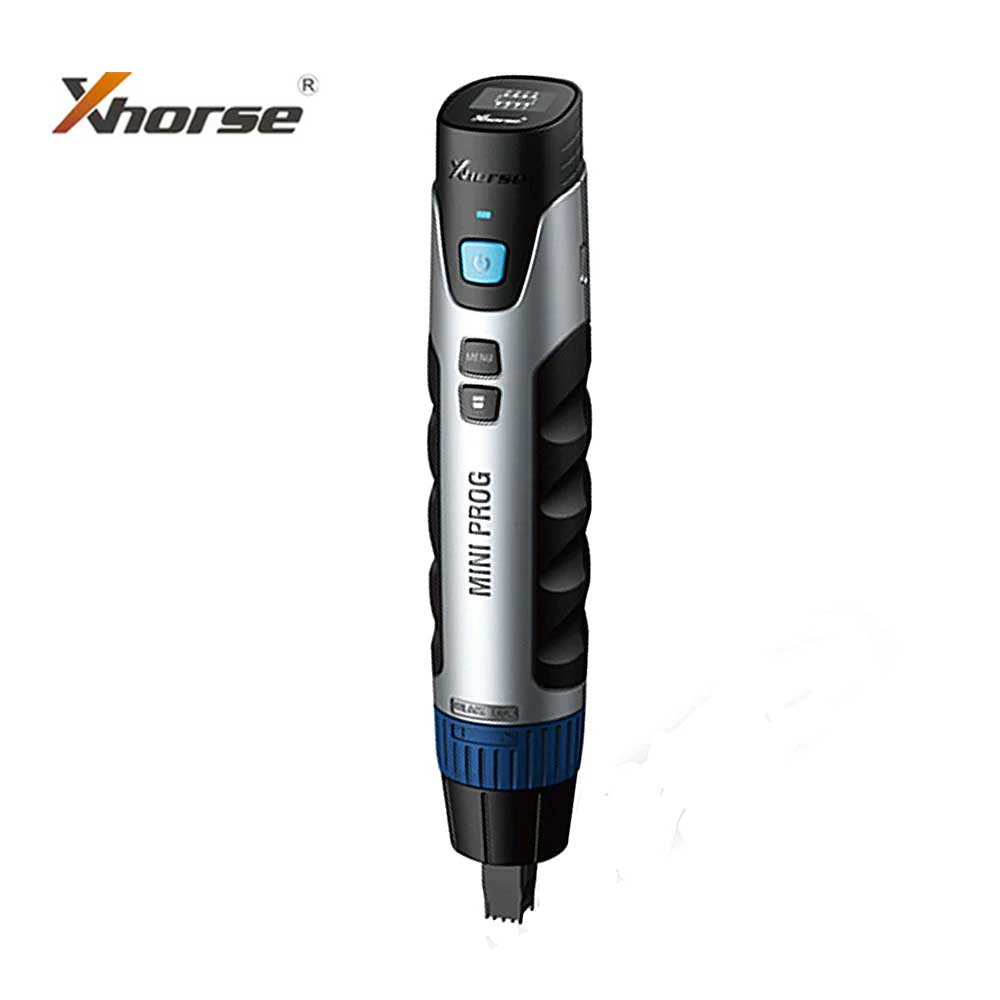

    Xhorse VVDI Mini Prog Multi-Functional Programming Device

    Xhorse MINI PROG, a professional smart programming device, provides users the most portable chip programming solution. The 3 different pin headers can be easily switched to read and write different chips and to satisfy different demands. The smart screen on the top of MINI PROG clearly shows the real-time working status. MINI PROG can be connected to your smartphone to intelligently complete the chip programming works via Bluetooth and WiFi.

    Features:

    • This new MINI PROG is the result of intelligence and speed to provide users easier programming solutions.
    • You can do the programming work anywhere, your house, car garage, workshop, office, outdoor, coffee shop, car etc. Just take it any where, and make it any time!
    • 3 Detect Connectors(Test Heads) Suitable for various Transponders.
    • Connect MINI PROG to the Xhorse App via Bluetooth & Wifi.
    • VVDI Mini Prog feature
    • Portable; Easy to use
    • No need to remove chip
    • No need soldering
    • No need to cut the wire
    • No need to lift the pin

    • Function of the new MINI Prog:

      • Directly read & write data without soldering
      • Support reading & writing EEPROM data
      • Support reading & writing ECU data
      • Accurately identify the pin connection status
      • Support repair of multiple modules
      • Connect to the APP via WiFi or Bluetooth; Connect to your smartphone (Android, IOS)
      • Support data local & cloud storage
      • Battery-powered device; Easy to use
      • More functions coming soon

      • Working Interfaces:

        You don t need to carry a computer or other devices anymore when working. What you need is only a mobile phone! Download Xhorse application in APP store and find MINI PROG, then start working! We support both IOS and Android systems.

        Xhorse XDKP30GL Multi-function Adapter For VVDI Key Tool Plus and Mini Prog For BOSCH ECU EIS EZS Adapters EWS4 Renew Adapters

        Xhorse Multi-function Adapter is designed especially for connecting old adapters to KEY TOOL PLUS and MINI PROG. This could help avoid purchasing new accessories coming with KEY TOOL PLUS.

        Compatible with:

        • KEY TOOL PLUS VVDI MINI PROG (DB15)
        • Xhorse Renew Adapters (Port PS2, mainly for MINI PROG)
        • EWS4 Adapter (DB25)
        • EIS EZS Adapter (DB9)
        • BOSH ECU Adapter (DB25)

        • Xhorse TB28FXXX Adapter for VVDI PROG Programmer

          TF28 can Read the Chip Model:

          • PA28F200B5T(PSOP44)
          • PA28F200B5B(PSOP44)
          • PA28F200BVT(PSOP44)
          • PA28F200BVB(PSOP44)
          • PA28F200BXT(PSOP44)
          • PA28F200BXB(PSOP44)
          • PA28F400B5T(PSOP44)
          • PA28F400B5B(PSOP44)
          • PA28F400BVT(PSOP44)
          • PA28F400BVB(PSOP44)
          • PA28F400BXT(PSOP44)
          • PA28F400BXB(PSOP44)
          • PA28F800B5T(PSOP44)
          • PA28F800B5B(PSOP44)
          • PA28F800BVT(PSOP44)
          • PA28F800BVB(PSOP44)
          • PA28F800BXT(PSOP44)
          • PA28F800BXB(PSOP44)
          • TB28F200B5T(PSOP44)
          • TB28F200B5B(PSOP44)
          • TB28F200BVT(PSOP44)
          • TB28F200BVB(PSOP44)
          • TB28F200BXT(PSOP44)
          • TB28F200BXB(PSOP44)
          • TB28F400B5T(PSOP44)
          • TB28F400B5B(PSOP44)
          • TB28F400BVT(PSOP44)
          • TB28F400BVB(PSOP44)
          • TB28F400BXT(PSOP44)
          • TB28F400BXB(PSOP44)
          • TB28F800B5T(PSOP44)
          • TB28F800B5B(PSOP44)
          • TB28F800BVT(PSOP44)
          • TB28F800BVB(PSOP44)
          • TB28F800BXT(PSOP44)
          • TB28F800BXB(PSOP44)

          • Package Including:

            • 1pc x TB28F Adapter Version 2 or 3, depends on your selection.

            • VVDI Prog ECU Reflash Cable

              This is for those with VVDI Prog but without working MCU Reflash Cables (lost or damaged)

              Please order this cable alone,if your cable is broken or lost. This is original from XHORSE

              Function: Read & Write chips

              Usage: Solder the line on pin of the chip before reading & writing ECUs

              ECS New Type Test Platform for BMW FEM & BDC With ELV Connector

              1. BMW F series FEM Test Platform
              This test platform is designed to preprocess the IMMO box for BMW F series FEM (Front Electronic Module) systems. It allows key programming without the need to disassemble and install the control unit in the car back and forth. The platform offers convenience and cost-effectiveness by completing the process on the bench.
              2. BMW F series BDC Test Platform
              Similar to the FEM platform, this test platform is specifically made for BMW F series BDC (Body Domain Controller) systems. It enables key programming without the need for constant disassembly and installation of the control unit in the vehicle.
              3. Japanese-made Wire with Built-in Start Button
              The wire used in this test platform is made of high-quality Japanese material. It comes with a built-in start button, providing a user-friendly design for easy key programming operations.
              4. Indicator Lights
              The test platform features indicator lights, including one for the start button and another for the IMMO box. These indicator lights help users monitor the key programming process and ensure smooth operation.
              5. User-Friendly Design
              The test platform is designed with user convenience in mind, making the key programming process more straightforward and efficient.
              6. High Quality and Low Price
              The test platform boasts high-quality components and materials while remaining competitively priced, providing a cost-effective solution for BMW key programming.
              7. Power Supply Requirement
              The test platform requires a power supply with a voltage of 12-15V and a current output of 2 to 5 amps to operate effectively. This power supply should be able to provide sufficient energy to carry out the key programming process smoothly.

              BMW CAS4 & CAS4+ New Type Test Platform W Original Connectors

              BMW FEM BDC test platform instruction is printed on the back.

              1. When the platform is connected to the FEM or BDC, turn on the power switch to level 1 and the IMMO box light is on, indicating that the communication between the test platform and FEM or BDC is successfully.
              3. After the IMMO box light is off, pres the start switch twice to turn on the ignition, the Dash light will be on, and then press or long press to start switch, and the dash light will be off.
              5. Plug the CON7 and CON8 cable to the corresponding position of FEM or BDC box.
              7. Put the BMW key into the coil.
              9. Plug the DASH line to the dashboard.
              11. Plug the power cable to the test platform.
              13. Turn on “Power Switch” to level 1 and the IMMO box light is on.
              15. After the IMMO box light is off, pres the start switch twice to turn on the ignition, the Dash light will be on, and then press or long press to start switch, and the dash light will be off.

              16. Smart System CAS3+ Comfort Access Key for BMW 2006 2007 2008 2009 2010 3B FCC# KR55WK49147

                  Replacement Key Fob for:

                  • BMW 3 SERIES – 2006, 2007, 2008, 2009, 2010
                  • BMW5 SERIES – 2006, 2007, 2008, 2009, 2010
                  • BMWE90 – 2007, 2008, 2009, 2010
                  • BMWE91 – 2007, 2008, 2009, 2010
                  • BMWE92 – 2007, 2008, 2009, 2010
                  • BMWE93- 2007, 2008, 2009, 2010

                  • Specifications:

                    • FCC ID: KR55WK49147
                    • Frequency: 315 MHz
                    • IC#: 267T-5WK49147
                    • Chip ID: PCF7945A (46 CHIP)
                    • Emergency Key: Included
                    • Battery: CR2032

                    • Aftermarket Keys don t have Logo.

                      Notes:

                      • Replacement Keyless Entry Remotes and Key fobs for Cars and Trucks (picture might show FRONT and BACK of the same key remote).
                      • All Keyless Remotes and Smart, Proxy Keys and Locksmith Tools include a brand new battery.
                      • All New Keyless Entry Remote Key Fob, Refurbished Remote Key Fob and Locksmith Tools are tested before we ship.
                      • Refurbished Remotes have an OEM board. The case may have been replaced with or without the logo.
                      • Aftermarket Remotes do not include logo.
                      • We do not cut or program keys at our warehouse. Please contact your local locksmith here for pricing.

                      • Compatibility Replacement Remotes: These remotes work with car models listed in the compatibility section.
                        **Our compatibility section is researched to the best of our knowledge – it is to be used as a suggested guide. Please confirm part number and FCC ID to ensure proper fitment.
                        In general there is no onboard programming procedure for newer replacement remote keys. Key fobs must be programmed by a professional locksmith. Please contact an automotive locksmith to get an accurate quote so they can program this key fob once you receive it.
                        Many keyless entry remote fob and smart key programming procedures allow you to do the programming yourself for free. Programming Instructions for Replacement Key Fobs are available here.
