Description

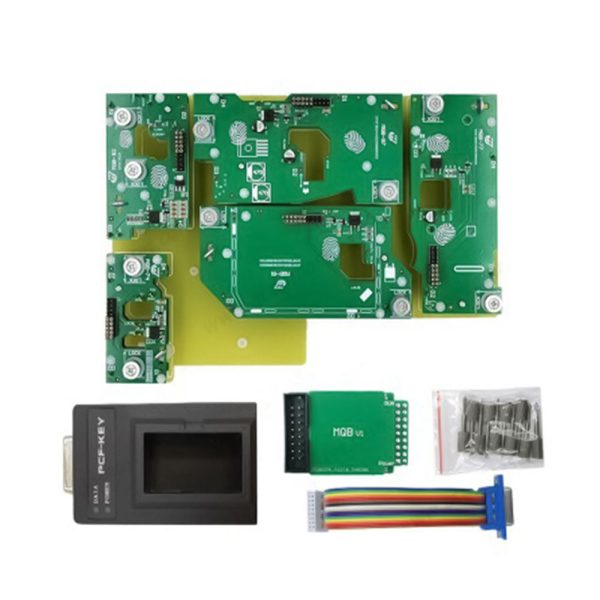

Yanhua Mini ACDP Module 33 for MQB48 Key Programming Mileage Correction with License A608 and 13 PCS Compact Size Solder-Free Interface Boards

Mini ACDP Module 33 MQB-33 with License A608. It supports VW the 4th 4.5th generation and MQB 5A etc. IMMO and mileage correction. It can work with both ACDP-1 and ACDP-2 Master basic version

Whole set compact size 13 solder-free interface board with License for MQB48. Module 33 work with both Mini ACDP and ACDP-2. ACDP hardware is not included.

Function:

• Supports VW the 4th 4.5th generation and MQB 5A etc. IMMO and mileage correction.
• Add keys and All key lost for Volkswagen MQB48 (AKL need to get Synchronous data from third party)
• Module 33 Support the following chip module instrument cluster 3524, 3525, 3526, 3529, 3532, 3533, 3536, 3537, and 8pin chip 95320

• Feature:

  • Using a quasi-blind plug-in interface board, no need to cut line, no need tolift pins, and data can be read and written without welding nor damage.
  • The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurateand firm.
  • The software comes with pin detection function, making data reading andwriting safer and more reliable.
  • There are two kinds of interface boards: Lock Fastening Interface board and Thumb Screw-Fastened Interface board

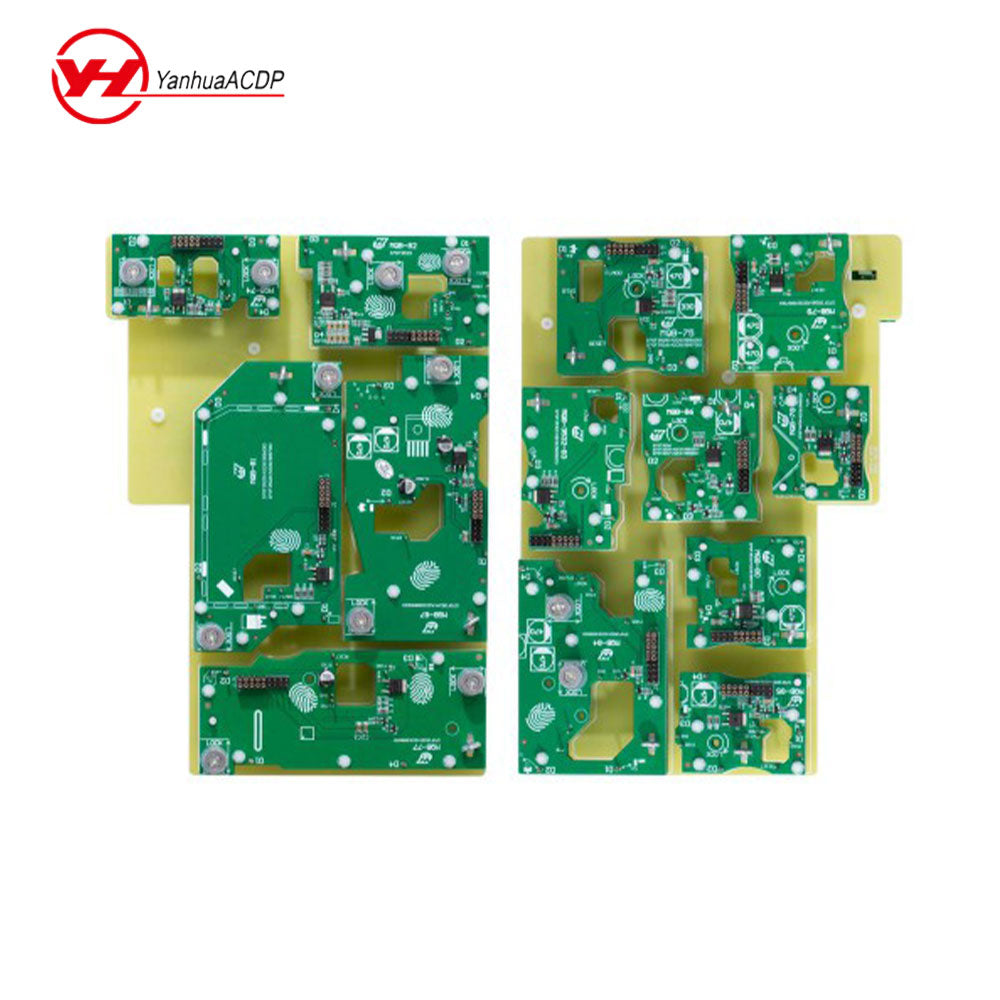

  • 13 PCS compact size solder-free interface boards with License Support:

    MQB-74 interface board Supports type:

    • D70F3524 (A2C00889000)
    • D70F3525 (A2C81589600)
    • D70F3526 (A2C81589700)

    • MQB-75 interface board:

      • D70F3525 (A2C81589600)
      • F70F3526 (A2C81589700)

      • MQB-77 interface board:

        • D70F3525 (A2C81589600)

        • MQB-78 interface board:

          • D70F3525 (A2C81589600)

          • MQB-79 interface board:

            • D70F3526 (A2C81589700)

            • MQB-80 interface board:

              • D70F3526 (A2C81589700)

              • MQB-82 interface board:

                • D70F3529

                • MQB-81 interface board:

                  • D70F3525 (A2C81589600)
                  • D70F3526 (A2C81589700)

                  • MQB-83 interface board:

                    • D70F3532 (A2C81589500)

                    • MQB-84 interface board:

                      • D70F3532 (A2C81589500)

                      • MQB-85 interface board:

                        • D70F3537 (A2C81589800)

                        • MQB-86 interface board:

                          • D70F3535 (A2C81589200)
                          • D70F3537 (A2C81589800)
                          • D70F3536

                          • MQB-87 interface board:

                            • D70F3524 (A2C00889000)

                            • Download:

                              • Module Diagram
